2026 Hyundai Venue near Fayetteville, NC
The 2026 Hyundai Venue presents a compact utility design supported by a detailed set of mechanical systems, structural engineering, and integrated technology. Its construction relies on a unibody layout formed from high tensile steel, which contributes to rigidity, predictable handling, and durability. The model retains a compact footprint that allows efficient maneuvering while offering a range of functional systems that contribute to driver control and operational consistency. Every configuration applies the same engine architecture and drivetrain format, ensuring uniform performance characteristics across trims.
Powertrain Configuration and Engine Specifications
The 2026 Hyundai Venue uses the Gamma Gen 2 1.6-liter Dual Port Injection DOHC 16-valve engine. This inline four-cylinder design operates with an aluminum block and aluminum head, which assists with weight management and thermal performance. The engine displaces 1598 cc and produces 121 horsepower at 6300 rpm along with 113 pound-feet of torque at 4500 rpm. A compression ratio of 11.2 to 1 guides combustion efficiency. The engine uses mid-phase Continuously Variable Valve Timing that adjusts valve operation to maintain consistent output throughout varying speeds and load demands. The bore and stroke measure 75.6 millimeters by 89 millimeters, shaping the engine’s internal geometry. Recommended fuel is unleaded. The exhaust system incorporates a WCC and UCC catalytic converter configuration that meets LEV3 ULEV70 emissions standards and contributes to reduced output levels. Supporting systems include an Alternator Management System and a three-point motor mount arrangement designed to mitigate vibration transfer into the cabin.
The ignition system uses an electronic distributorless stick coil arrangement, and the alternator is rated at 110 amps with 13.5 volts. The battery carries a 45 amp-hour rating, and the starter is a 12-volt 0.9-kilowatt unit. These electrical specifications support engine operation along with onboard accessories and charging functions.

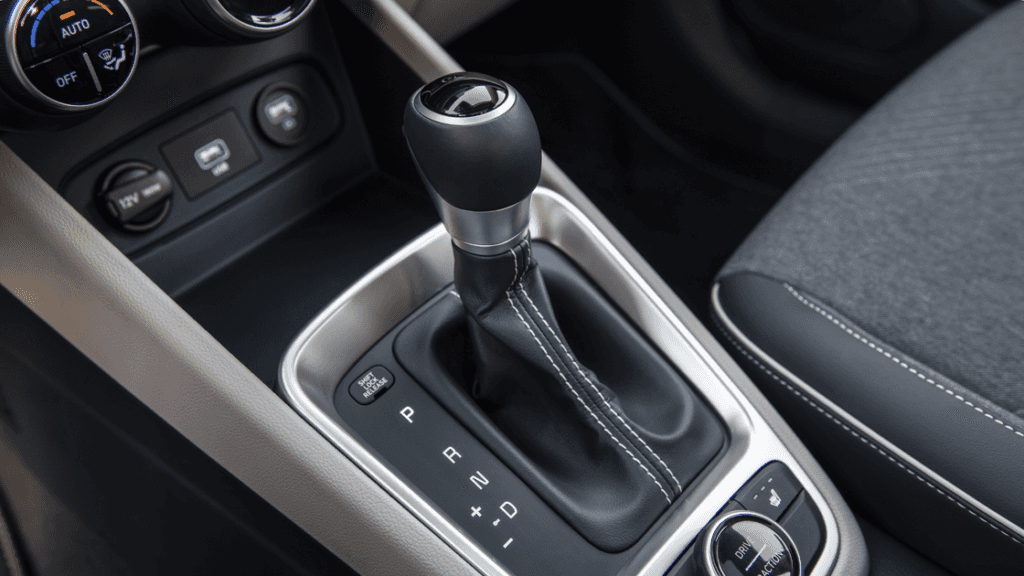

Every trim uses a front-wheel-drive layout in combination with Hyundai’s Intelligent Variable Transmission. This transmission uses a gate-type SHIFTRONIC® design that allows manual style gear selection along with standard continuous ratio operation. Gear ratios range from 0.385 to 2.680 while the final drive ratio ranges from 2.822 to 1.822. Hill Start Assist Control is included and supports controlled acceleration on inclined surfaces. The Ignition Key Interlock System is integrated into the transmission housing. These components work together to ensure predictable shift behavior and controlled torque transfer.
Mechanical Systems and Component Engineering
Steering performance is defined by a rack and pinion system supported by Column Mounted Motor Driven Power Steering. This configuration produces a steering ratio of 14.4 at 360 degrees and 2.7 turns from lock to lock. The turning radius is 5.1 meters, and the curb-to-curb turning diameter is 16.6 feet. These measurements contribute to maneuverability and low-speed handling.
The braking system varies by trim level, but all versions use ventilated front disc brakes with an 11.0-inch diameter. Rear braking differs, with the SE trim using an 8.0-inch drum, while upper trims use a 10.3-inch disc. All braking configurations include a 10.0-inch single vacuum booster along with a tandem master cylinder. Every 2026 Hyundai Venue includes Anti-lock Braking with Electronic Brake Force Distribution which manages brake pressure distribution during varied traction conditions.
The suspension uses a MacPherson® strut system with coil springs and a stabilizer bar at the front. The rear uses a coupled torsion beam axle with twin-tube shock absorbers. Both front and rear incorporate gas-charged twin-tube shock absorbers designed for consistency across varied road surfaces. The chassis uses a unibody structure that prioritizes rigidity through high tensile steel for the primary material.
Exterior Structure and Functional Elements

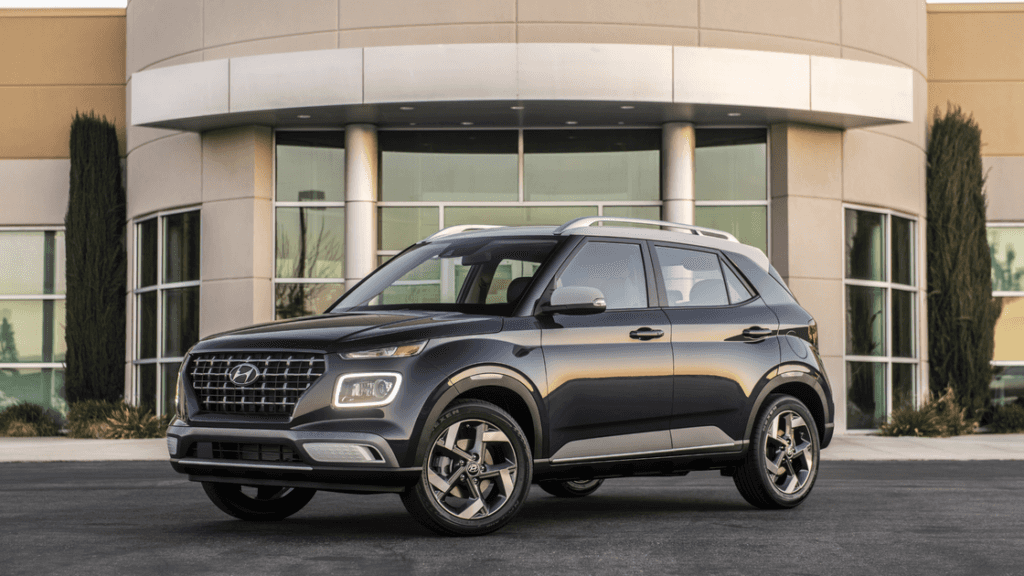

Exterior dimensions include a 99.2-inch wheelbase, an overall length of 159.1 inches, a width of 69.7 inches, and a height of 61.6 inches. Front and rear overhangs measure 31.1 inches and 28.7 inches. Ground clearance measures 6.69 inches. The coefficient of drag is 0.34, and approach, departure, and breakover angles are 21.3 degrees, 32.0 degrees, and 19.2 degrees.
The SE trim includes 15-inch alloy wheels with 185/65 R15 tires, and upper trims use 17-inch alloy wheels with 205/55 R17 tires. All configurations include a temporary compact spare tire sized T125 80 D15 mounted on a steel wheel. Exterior lighting includes projector headlights, automatic headlight control, one-touch triple turn signals, and lenticular effect taillights. The outside mirrors vary by trim, with heated mirrors equipped on SEL and SEL with two-tone roof models. All body configurations include body-color bumpers, black belt moldings, and body-color door handles. SEL models add a chrome grille and an available power glass sunroof with tilt and slide functions.
Glass tinting and two-speed intermittent front wipers are standard. Badge placement remains uniform across, with VENUE lettering positioned at the rear, as confirmed by the images in the reference document.
Interior Layout and Cabin Technology
The cabin accommodates five passengers. Seating materials include cloth for SE and SEL trims, while the SEL with two-tone roof includes a cloth and H-Tex® combination. The seat provides six-way adjustment along with height adjustment and a sliding armrest with storage. Heated front seats are included on SEL trims. The rear seat features a 60/40 split-folding design.
Instrumentation includes a speedometer, tachometer, fuel level display, water temperature gauge, PRND indicators for IVT models, turn and hazard indicators, low and high beam indicators, cruise control notification, ambient temperature display, odometer, wiper mode indicator, drive mode indicator, and distance to empty function. Warning lights include oil pressure, battery charge, door and trunk ajar, airbag, seatbelt, tire pressure, low fuel, parking brake, brake fluid, check engine, motor-driven power steering, electronic stability control, and forward collision avoidance status. SEL trims also include a sunroof open indicator.

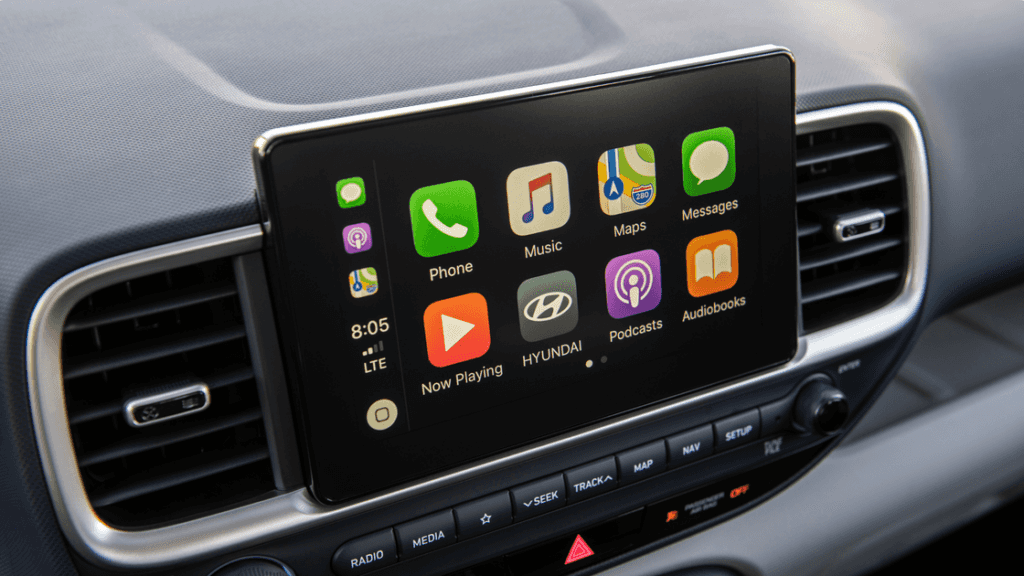

The audio system uses an 8-inch touchscreen with AM/FM radio and wireless Android Auto™ and Apple CarPlay®. Bluetooth® with voice recognition is standard, and the system uses six speakers, including two tweeters. Charging ports include a Type A and Type C pair in the front cabin, and SEL trims add dual Type C charging ports in the second row along with wireless device charging.
Climate control is managed through manual air conditioning in the SE trim and automatic temperature control in SEL models. A rear window defroster with a timer and a cabin air filter are included in all versions. Convenience features include power windows, power door locks, cruise control, remote keyless entry on the SE, proximity key with push button start on the SEL, interior lighting controls, map lights, cargo area lighting, and multiple storage compartments.
Interior measurements include 39.4 inches of front headroom without a sunroof and 38.4 inches with a sunroof. Rear headroom measures 38.6 inches. Front legroom is 41.3 inches, and rear legroom is 34.3 inches. Shoulder room is 53.9 inches in front and 53.7 inches in the rear. Hip room measures 52.1 inches in front and 43.5 inches in the rear.
Passenger volume is 91.9 cubic feet. Luggage capacity is 18.7 cubic feet with the rear seats in use and 31.9 cubic feet with the rear seats folded, which creates a total volume of 110.6 cubic feet. The curb weight ranges from 2612 to 2738 pounds, and the gross vehicle weight rating is 3770 pounds. Fuel tank capacity is 11.9 gallons.
Integrated Safety Systems and Driver Assistance Technology
Standard passive safety includes advanced front airbags, a passenger classification system, front side impact airbags, side curtain airbags for both rows, three-point seatbelts for all seating positions, adjustable front seatbelt anchors, front seatbelt pretensioners with buckle sensors and anchor pretensioners, child safety locks, LATCH anchors, front and rear crumple zones, body side reinforcements, five mph bumpers, and a shift interlock system.
Active safety systems include Anti-lock Braking, Electronic Brake Force Distribution, Electronic Stability Control, Traction Control, Vehicle Stability Management, Brake Assist, and Tire Pressure Monitoring. Advanced driver assistance systems include Forward Collision Avoidance Assist with pedestrian detection, Lane Keeping Assist, Driver Attention Warning, High Beam Assist and Rear Occupant Alert through door logic. SEL trims add Blind Spot Collision Warning and Rear Cross Traffic Collision Warning.
