2026 Hyundai Tucson Hybrid near Raeford, NC
The 2026 Hyundai Tucson Hybrid integrates turbocharged gasoline performance with an advanced electric propulsion system in a compact SUV platform. Hyundai engineers designed this model around the Smartstream® 1.6-liter Turbo-GDI engine and a permanent magnet synchronous motor, producing a combined system output of 231 horsepower and 271 lb-ft of torque. The hybrid configuration operates through a 6-speed automatic transmission and standard HTRAC Active On-Demand All-Wheel Drive. Its lithium-ion battery system, reinforced unibody structure, and integrated driver-assistance technologies reflect a focus on efficiency, structural strength, and mechanical precision.
Smartstream® Turbocharged Hybrid Powertrain Engineering
The 2026 Hyundai Tucson Hybrid uses a 1.6-liter Turbo-GDI DOHC 16-valve inline 4-cylinder engine from the brand’s Smartstream® engine family. This gasoline engine incorporates Continuously Variable Valve Duration technology to optimize valve timing across operating ranges. Displacement measures 1,598 cubic centimeters. The engine produces 178 horsepower at 5,500 rpm and 195 lb-ft of torque between 1,500 and 4,500 rpm. Bore and stroke dimensions measure 75.6 mm by 89.0 mm, and the compression ratio is 10.5 to 1. The engine features a full engine cover, aluminum block and head construction, a variable intake system, and distributor-less ignition.
The hybrid system pairs the turbocharged engine with a permanent magnet synchronous electric motor rated at 47.7 kW, equivalent to 64 horsepower, operating between 1,800 and 2,100 rpm. The electric motor produces 195 lb-ft of torque at 1,700 rpm. Combined system output totals 231 horsepower and 271 lb-ft of torque. The hybrid battery is a lithium-ion unit with a maximum voltage of 270 volts and a system capacity of 1.49 kWh. Battery power output reaches 64 kW. The hybrid system meets SULEV30 emissions standards and operates on regular unleaded fuel.
Transmission Design and HTRAC All-Wheel Drive Control
The 2026 Hyundai Tucson Hybrid uses a 6-speed automatic torque converter transmission designed specifically for hybrid integration. The gear ratios are 4.638 for first, 2.826 for second, 1.841 for third, 1.386 for fourth, 1.000 for fifth, and 0.772 for sixth. Reverse gear ratio measures 3.385. The final gear ratio for the HEV is 3.320. This configuration supports balanced acceleration and highway cruising efficiency.
HTRAC Active On-Demand All-Wheel Drive comes standard on the hybrid model. The system actively distributes torque between the front and rear axles depending on traction requirements. Drivers can engage AWD Lock functionality for increased traction in low-speed conditions. Drive Mode Select is mounted on the center console, allowing adjustment of throttle response and drivetrain behavior. Steering-wheel-mounted paddle shifters and Shift-By-Wire technology provide additional driver control.
Steering, Suspension, and Brake Specifications
The 2026 Hyundai Tucson Hybrid features a rack-and-pinion Motor Driven Power Steering system mounted on the steering column. The steering ratio is 13.7 to 1, with 2.41 turns lock to lock. The turning diameter measures 38.6 feet from curb to curb.
Front suspension uses a MacPherson® strut configuration with coil springs, gas-pressurized shock absorbers, and a stabilizer bar. The rear suspension employs a multi-link design with a stabilizer bar and gas-pressurized shock absorbers. This combination supports controlled handling and ride stability.
Braking components include ventilated front disc brakes measuring 12.8 inches by 1.2 inches, equivalent to 325 mm by 30 mm. Rear brakes use solid discs measuring 12.0 inches by 0.4 inches, equivalent to 300 mm by 10 mm. The Anti-lock Braking System includes Electronic Brake-force Distribution across four wheels, four channels, and four sensors. Downhill Brake Control, Hillstart Assist Control, Brake Assist, and an Electronic Parking Brake with Automatic Vehicle Hold are standard.
Structural Platform and Body Composition
The 2026 Hyundai Tucson Hybrid uses a unibody monocoque structure constructed primarily from advanced high-strength steels and high tensile steel. Bodyside reinforcements strengthen side-impact protection. The integrated chassis design supports torsional rigidity and optimized crash energy distribution.
Exterior dimensions include a wheelbase of 108.5 inches and an overall length of 182.7 inches. Overall width measures 73.4 inches. Overall height with roof rails measures 66.3 inches in AWD configuration. Tread width for 17-inch alloy wheels measures 63.8 inches in front and 64.1 inches in the rear. For 19-inch wheels, tread width measures 63.6 inches in front and 63.9 inches in the rear. Front and rear overhang measure 35.6 inches and 38.6 inches, respectively. Minimum ground clearance for AWD models measures 8.3 inches. The coefficient of drag is 0.33. Roof rails support a load capacity of 220 pounds.
Exterior Lighting and Functional Equipment
The 2026 Hyundai Tucson Hybrid features Bi-LED headlights providing high and low beam functionality. LED front turn signals and LED Daytime Running Lights are standard. Premium half mirror-type Daytime Running Lights are available on select trims. LED taillights and LED license plate lights enhance rear visibility. Automatic headlights and High Beam Assist are included. A roof-mounted center high-mount stop lamp integrates into the rear spoiler.
Side mirrors include heated functionality and Blind-Spot Collision Warning indicators. Integrated turn signal indicators are available on higher trims. Exterior glass includes solar glass for the windshield and front door windows, and acoustic laminated windshield construction reduces noise transmission. Privacy glass is applied to rear, quarter, and back glass areas on applicable trims.
Wheel configurations include 17-inch by 7.0J alloy wheels, 18-inch by 7.5J alloy wheels, and 19-inch by 7.5J alloy wheels, depending on trim selection. Tire sizes correspond to 235/65R17, 235/60R18, and 235/55R19 specifications. A tire mobility kit is standard on hybrid models.
Additional exterior features include roof side rails, trailer pre-wiring, available tow hitch preparation, a shark-fin roof antenna, a rear spoiler integrated with the center high-mount stop lamp, and a Hands-free Smart Liftgate with adjustable height setting.
Interior Space Measurements and Seating Configurations

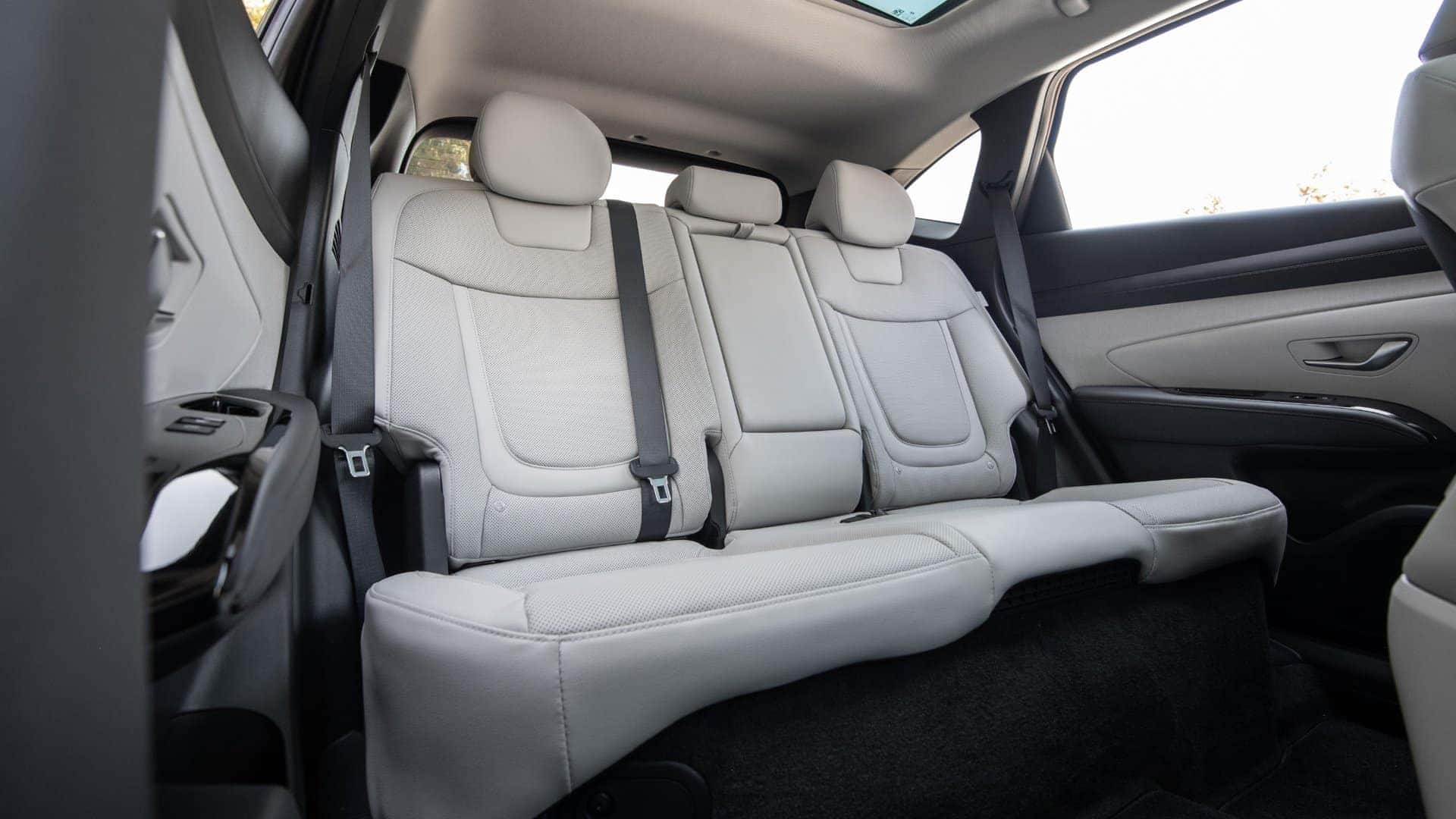

The 2026 Hyundai Tucson Hybrid accommodates five passengers. Total interior volume without a panoramic sunroof measures 146.7 cubic feet. Passenger interior volume measures 107.9 cubic feet. Headroom without a sunroof measures 40.1 inches in front and 39.5 inches in the rear. Legroom measures 41.4 inches in front and 41.3 inches in the rear. Shoulder room measures 57.6 inches in front and 56.0 inches in the rear. Hip room measures 54.5 inches in front and 53.9 inches in the rear.
Cargo capacity with rear seats upright measures 38.7 cubic feet under SAE measurement standards. With rear seats folded, cargo capacity expands to 74.5 cubic feet SAE and 80.0 cubic feet maximum. The rear seats use a 60/40 split fold-down and reclining configuration with adjustable head restraints. Remote release folding from the cargo area is included. A dual-level cargo floor provides configurable storage.
Seating materials include cloth-trimmed seats with stain- and odor-resistant treatment or H-Tex® trimmed surfaces on applicable trims. Higher trims offer leather-trimmed seating. Front seating includes an 8-way power driver’s seat with lumbar support and available ventilated front seats. Heated front seats provide three-step adjustment. Heated rear seats are available on the Limited trim. An Integrated Memory System for the driver’s seat and mirrors is included on higher trims.
Digital Displays, Multimedia, and Connectivity Systems

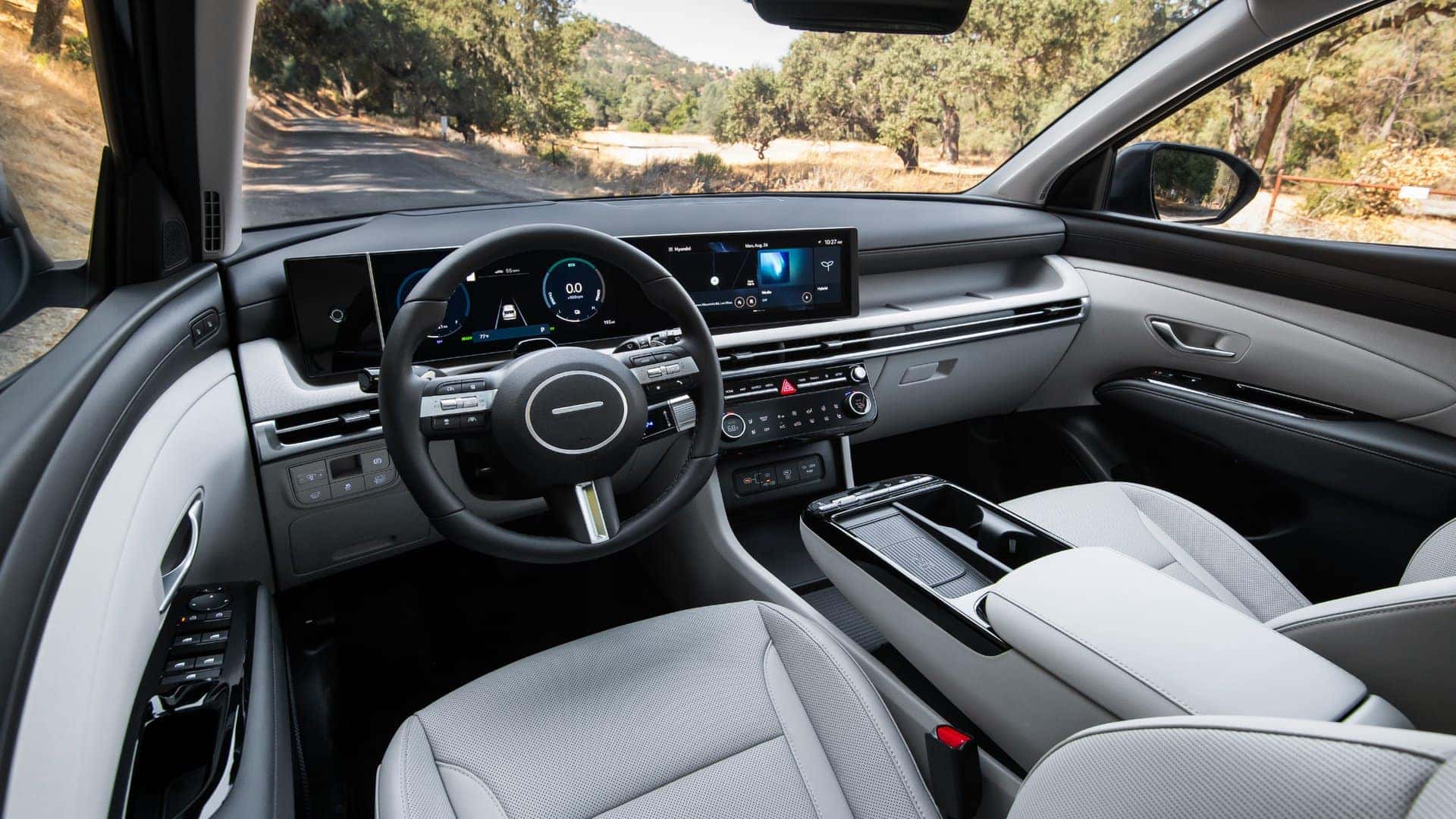

A 12.3-inch color touchscreen infotainment display is standard. The system supports AM and FM radio, HD Radio™ technology, and SiriusXM® Satellite Radio. Wireless Apple CarPlay® and Android Auto™ integration are included. Over-the-air controller update capability allows system updates. Navigation and multimedia software OTA updates are available on equipped trims.
USB connectivity includes dual front USB Type-C ports with one data and charge port and one 27-watt charge port. Rear passengers receive dual USB ports with 27-watt charging output. A rearview camera is standard. Select trims feature a Bose® Premium Audio System with a digital 8-channel amplifier and eight speakers, including a center-mounted Twiddler speaker and rear quarter panel woofer.
Instrumentation includes either a 4.2-inch Multi-Information Display or an available 12.3-inch digital instrument cluster. Indicators display Smart Cruise Control with Stop and Go, lane assistance systems, forward collision alerts, and drivetrain status information.
Climate Control and Cabin Systems
Dual automatic temperature control with Auto Defogger is available, using capacitive-touch controls with physical temperature adjustment knobs. After-Blow logic reduces internal moisture accumulation. Rear seat heater ducts and floor console-mounted rear air vents improve airflow distribution. A cabin air filter and rear window defroster with timer are standard.
Convenience features include proximity key entry with push-button start, remote keyless entry with alarm and panic function, power door locks, Smart Cruise Control with Stop and Go, and available Remote Smart Parking Assist on Limited trim. Hyundai Digital Key 2 Premium functionality with NFC, BLE, and UWB capability is included on higher trims. Bluelink®+ Connected Car System is standard.
Comprehensive Safety and Driver Assistance Technologies
The 2026 Hyundai Tucson Hybrid includes advanced front airbags, front-seat side-impact airbags, side curtain airbags with rollover sensors, and rear side airbags. The Occupant Classification System uses seat weight and seat track sensors. Three-point seatbelts with pretensioners and load limiters are provided for front and rear outboard seating positions.
Active safety systems include Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction turning detection using sensor fusion. Blind-Spot Collision Warning, Rear Cross-Traffic Collision-Avoidance Assist, Lane Keeping Assist, Lane Following Assist, Driver Attention Warning, Intelligent Speed Limit Assist, and Safe Exit Warning are standard. Higher trims include Highway Driving Assist 1, Navigation-based Smart Cruise Control with Curve Control, Parking Collision-Avoidance Assist Reverse, Surround View Monitor, Blind-Spot View Monitor, and Forward Attention Warning using an in-cabin camera.
Electronic Stability Control integrates with Traction Control and Brake Assist. Vehicle Stability Management and a Tire Pressure Monitoring System with individual tire indicators are included.
Schedule a Test Ride at ALM Hyundai Lumberton
We invite you to examine the 2026 Hyundai Tucson Hybrid in detail at ALM Hyundai Lumberton near Raeford, NC. During your visit, our team will demonstrate the 231-horsepower hybrid system, HTRAC all-wheel drive operation, and the 12.3-inch digital display interface. A scheduled test drive allows you to assess steering response, suspension calibration, braking performance, and integrated safety systems under controlled conditions. You can also explore the cargo configurations, seating adjustments, and connectivity features firsthand. Contact our dealership to arrange a time to evaluate the 2026 Hyundai Tucson Hybrid and review its technical specifications in person.
