2026 Hyundai Santa Fe near Fayetteville, NC
The 2026 Hyundai Santa Fe introduces a streamlined combination of mechanical strength, drivetrain flexibility, and structural innovation. Built on a unibody platform using high-strength steel, the model delivers a range of performance-focused features designed to support efficiency and handling under diverse conditions. With multiple powertrain configurations, advanced control systems, and segment-leading technical enhancements, the 2026 Hyundai Santa Fe maintains its reputation for engineering consistency and practicality.
Engine Architecture and Output Capabilities

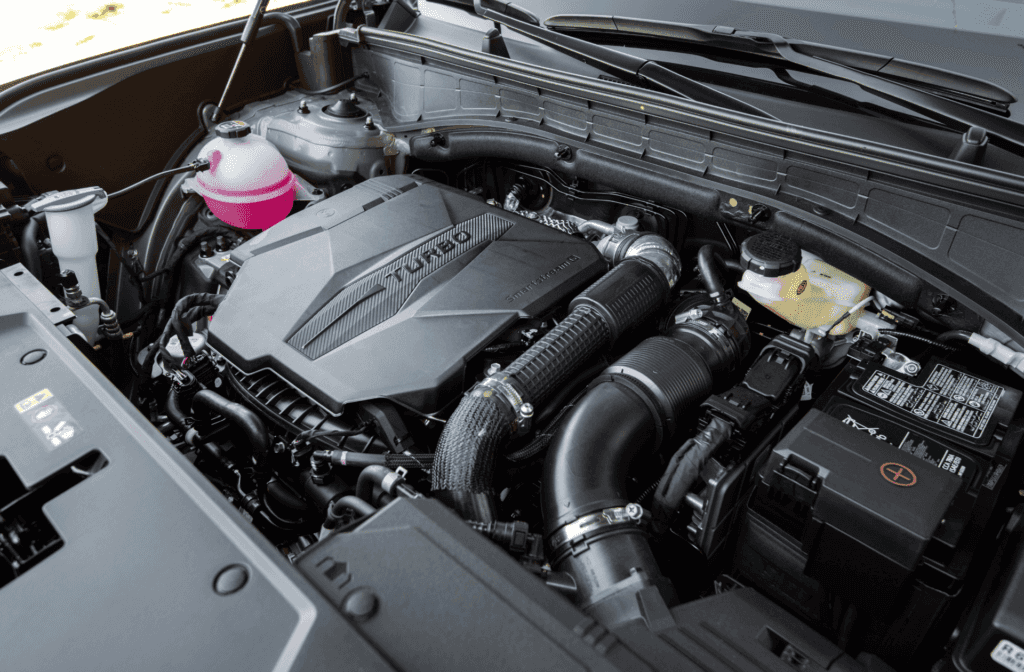

Two distinct engine platforms form the foundation of the 2026 Hyundai Santa Fe lineup. The 2.5-liter turbocharged gasoline engine is available across the SE, SEL, XRT, Limited, and Calligraphy trims. This power unit produces 277 horsepower at 5800 rpm and delivers 311 pound-feet of torque at 4000 rpm. It utilizes a turbocharged intake system and gasoline direct injection. With an aluminum block and head, it maintains a compression ratio of 10.5 to 1 and incorporates Idle Stop and Go functionality.
The hybrid models, including Blue, SEL Hybrid, Limited Hybrid, and Calligraphy Hybrid, are powered by a 1.6-liter turbocharged gasoline engine paired with a permanent magnet synchronous electric motor. The gas engine generates 178 horsepower at 5500 rpm and 195 pound-feet of torque between 1500 and 4500 rpm. The electric motor provides 44.2 kW, estimated at 60 horsepower, and 195 pound-feet of torque between 1600 and 2100 rpm. Combined system output reaches 231 horsepower with 271 pound-feet of torque available between 1000 and 4100 rpm. The hybrid system uses a lithium-ion battery rated at 270 volts with a 1.49 kWh capacity.
Transmission and Traction Design
Transmission options are configured based on the selected powertrain. Gasoline models include an 8-speed automatic transmission, while hybrid variants feature a 6-speed automatic transmission. Both configurations support SHIFTRONIC® manual shifting through paddle shifters and utilize Shift-By-Wire technology.
Drive configurations include standard front-wheel drive or HTRAC all-wheel drive, which operates as an active on-demand system. Torque distribution adjusts automatically based on drive mode selection. Comfort, Eco, Sport, and Smart modes distribute torque from 100 to 0 up to 50 to 50. Snow mode varies from 80 to 20 up to 50 to 50. The AWD Lock maintains a 50 to 50 balance. In the XRT trim, Sand and Mud modes provide a 50 to 50 distribution exclusively.
Brake and Steering Configuration
The 2026 Hyundai Santa Fe features ventilated disc brakes on all four wheels with a uniform 12.8-inch diameter. Brake control is enhanced by standard electronic brake-force distribution, anti-lock braking, and driver-selectable Downhill Brake Control. Hillstart Assist Control and Brake Assist are also standard. The parking brake is electronic with an auto-hold function. Trailer Sway Control is included on all models.
Steering is managed through Motor Driven Power Steering using a column-mounted rack and pinion system. The overall steering ratio is 13.7 with 2.6 turns lock to lock. The turning diameter measures 37.9 feet curb to curb.
Suspension Framework and Structural Design
The front suspension system uses MacPherson® struts combined with coil springs, a stabilizer bar, and gas-pressurized shock absorbers with advanced valving. The rear suspension features a multi-link independent layout with separated spring and shock configurations and similar damping characteristics. These components work together to deliver consistent stability across all road types.
The body uses a monocoque structure constructed from high-strength steel. This structural integrity supports enhanced occupant safety and body rigidity across all trims.
Wheel and Tire Configuration
Wheel options vary by trim. SE and SEL models come with 18-inch alloy wheels fitted with Goodyear® 235/60 R18 tires. The SEL Hybrid and XRT models use Continental 245/60 R18 all-terrain tires. Limited and Calligraphy trims offer 20-inch and 21-inch alloy wheels with Pirelli or Kumho tires, depending on drivetrain. Hybrid variants include a tire mobility kit, while internal combustion models come with a compact spare.
Lighting and Exterior Components

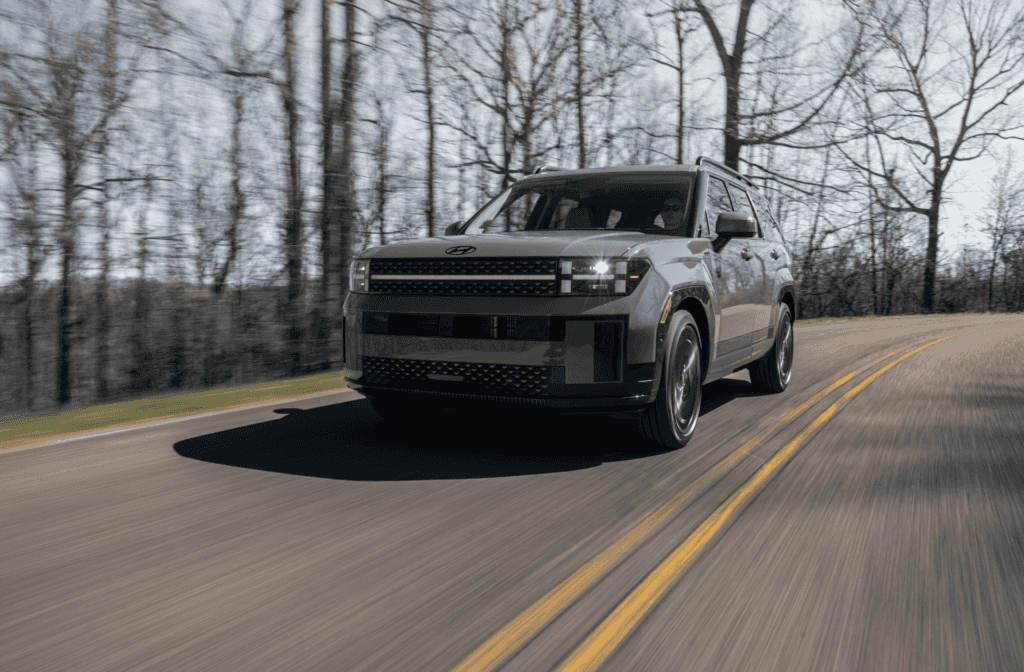

LED lighting systems are standard across all trims, including projector headlights, taillights, daytime running lights, and interior illumination. Automatic headlights and High Beam Assist are included. Rain-sensing windshield wipers are found on Limited and Calligraphy trims.
Side mirrors on upper trims are heated, power-folding, and include turn signal indicators. Blind-Spot and Rear Cross-Traffic Collision Avoidance Assist are integrated into the mirror system. Other exterior components include solar front glass, privacy rear glass, roof-mounted center stop lamps, and a shark-fin antenna. A smart hands-free liftgate is standard on all trims, and trailer pre-wiring is included across the board.
Interior Space and Seating Materials
Interior configurations allow seating for six or seven occupants. Seating materials include stain-resistant cloth, H-Tex® leatherette, genuine leather, and Nappa leather, depending on trim level. Front seating includes power adjustment with lumbar support. Ventilated front seats and a relaxation function are available on higher trims. The second row provides fold-flat 60/40 seating with recline, available captain’s chairs, and optional heating. The third row includes 50/50 split-fold seating with room lamps.

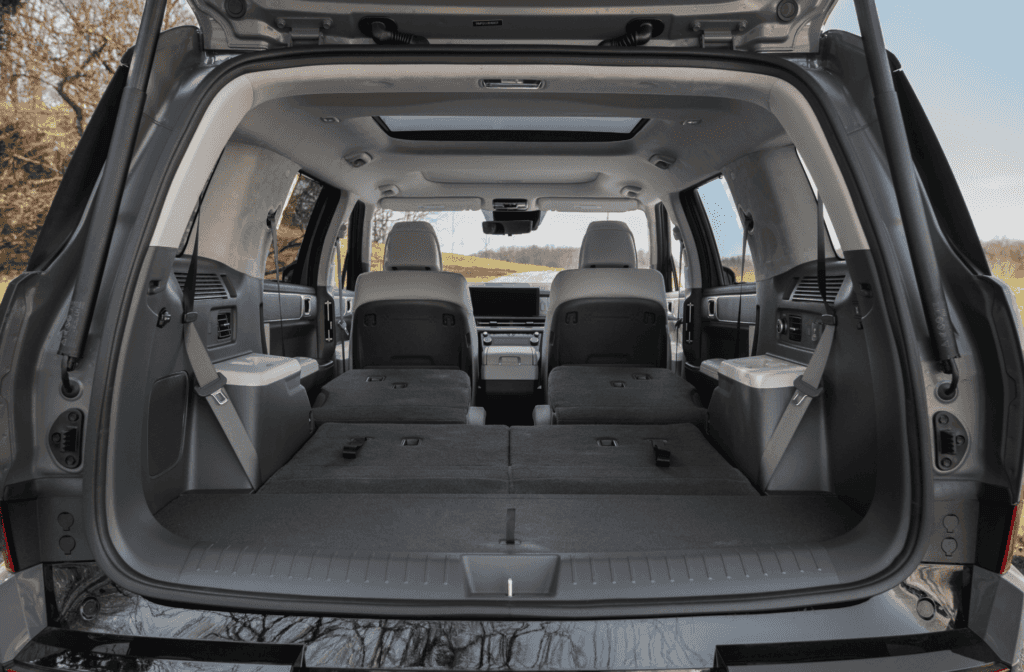

Interior dimensions provide 44.4 inches of front legroom, 42.3 inches in the second row, and 30.0 inches in the third row. Headroom reaches 41.1 inches in the front row without a sunroof and 40.2 inches with one. Cargo volume includes 14.6 cubic feet behind the third row, 40.5 cubic feet behind the second, and 79.6 cubic feet with all rear seats folded.
Audio and Digital Interface
Standard infotainment includes a 12.3-inch digital display with AM/FM/HD Radio™ and Bluetooth® integration. Upper trims feature a 12.3-inch touchscreen with navigation, real-time traffic data, and built-in Wi-Fi hotspot support. Wireless Android Auto™ and Apple CarPlay® are standard. Bose® premium audio with 12 speakers is available on Limited and Calligraphy trims. Additional features include Hyundai Pay, Dynamic Voice Recognition, and Rear Seat Quiet Mode.
High-power USB-C charging ports are available in all rows. Wireless device charging is included on SEL trims and above. Instrument clusters range from a 4.2-inch color display on base trims to a fully digital 12.3-inch cluster on upper models.
Safety and Monitoring Technology
Safety systems include nine airbags covering all rows, including a driver knee airbag. Standard features also include electronic stability control, traction control, vehicle stability management, and a tire pressure monitoring system with individual tire indicators.
Active safety features include Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction-turning detection, Lane Keeping Assist, Lane Following Assist, and Driver Attention Warning. Advanced features on upper trims include Blind-Spot Collision-Avoidance Assist, Parking Collision-Avoidance Assist, Surround View Monitor, and Highway Driving Assist. Remote Smart Parking Assist is available on the top two trims. Rear Occupant Alert with radar and Bluelink® integration is standard on SEL Hybrid and above.
Interior Climate and Utility Features
Climate control systems vary by trim. Base models include manual air conditioning, while dual-zone automatic climate control with auto defog is available on hybrid and higher trims. Air vents are included for all three rows. Rear window defrost with a timer, external temperature display, and cabin air filtration are standard.
Convenience features include Smart Cruise Control with Stop & Go, power windows with auto functionality by trim, proximity key entry with push-button start, and Hyundai Digital Key 2. Storage elements include dual-level center console storage, underfloor cargo trays, and overhead lighting.
Aerodynamics and Exterior Dimensions
The 2026 Hyundai Santa Fe has a wheelbase of 110.8 inches and an overall length of 190.2 inches. Width measures 74.8 inches, and height reaches 67.7 inches without roof rails and 69.7 inches with roof rails. Ground clearance varies from 7.0 inches in standard models to 8.3 inches in the XRT. The coefficient of drag is rated at 0.294. Roof rails can carry up to 220 pounds.
Fuel Efficiency and Emission Ratings
Fuel economy varies based on drivetrain and engine type. Gasoline models with front-wheel drive offer 20 miles per gallon in the city and 29 on the highway. All-wheel drive gasoline models return 20 city and 28 highway. The XRT trim delivers 19 city and 25 highway. Hybrid models with front-wheel drive are rated at 37 city and 36 highway. Hybrid all-wheel drive versions are rated at 35 city and 34 highway.
Emissions scores include a smog rating of 6 across all trims. The global warming score is 5 for gasoline models and 7 for hybrid variants.
Disclaimer: 2026 SANTA FE SE / SEL / Limited / Calligraphy FWD: 20 City/ 29 Highway/ 24 Combined MPG. 2026 SANTA FE SE / SEL / Limited / Calligraphy AWD: 20 City/ 28 Highway/ 23 Combined MPG. 2026 SANTA FE XRT AWD: 19 City/ 25 Highway/ 21 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
Visit ALM Hyundai Lumberton for a Test Drive
At ALM Hyundai Lumberton near Fayetteville, NC, you are welcome to experience the refined engineering of the 2026 Hyundai Santa Fe. Explore the vehicle’s robust 2.5L turbocharged output, innovative hybrid system, or advanced all-wheel drive with terrain management. Schedule a test drive to explore how its integrated safety systems and modern digital interfaces can serve your driving needs with precision and confidence. Our team is ready to help you find the 2026 Hyundai Santa Fe configuration that best supports your daily operation and travel demands.
