2026 Hyundai Santa Fe near Elizabethtown, NC
The 2026 Hyundai Santa Fe offers two distinct powertrain configurations designed to support performance, efficiency, towing capability, and all-weather traction. Gasoline-powered models use a Smartstream® 2.5-liter Turbo GDI + MPI DOHC 16-valve inline 4-cylinder engine producing 277 horsepower at 5,800 rpm and 311 lb-ft of torque at 4,000 rpm. The engine features an aluminum block and head construction, turbocharging, gasoline direct injection, and Idle Stop and Go functionality. Hyundai pairs this engine with an 8-speed automatic transmission and SHIFTRONIC® paddle shifters to provide direct gear control during acceleration and highway driving.
Hybrid variants use a Smartstream® 1.6-liter Turbo GDI DOHC 16-valve inline 4-cylinder engine combined with a permanent magnet synchronous electric motor. The hybrid system generates a combined 231 horsepower and 271 lb-ft of torque. The electric motor contributes an estimated 60 horsepower and 195 lb-ft of torque while operating through a 270-volt lithium-ion battery system with a 1.49-kWh capacity. Hybrid models use a 6-speed automatic transmission with Shift-By-Wire technology and paddle shifters. Both gasoline and hybrid models are compatible with regular unleaded fuel and use SULEV_30 emissions control systems.
The drivetrain lineup includes front-wheel drive and available HTRAC all-wheel drive. The HTRAC system actively adjusts torque distribution according to selected driving modes. Comfort, Eco, Sport, and Smart modes can vary power delivery from front-biased operation to balanced torque distribution. Snow mode modifies traction response for slippery conditions, while AWD Lock maintains a fixed 50:50 split for additional traction support. XRT models also include Sand and Mud modes calibrated for loose surfaces and uneven terrain.
Suspension Tuning, Steering Response, and Braking Systems
The 2026 Hyundai Santa Fe uses a unibody chassis structure reinforced with high-strength steel. Front suspension components include a MacPherson® strut system with coil springs and a stabilizer bar. Rear suspension uses a multi-link independent design with separated springs and shocks. Gas-pressurized shock absorbers with advanced valving contribute to ride stability and suspension control during cornering and highway travel.
The steering system uses column-mounted Motor Driven Power Steering with rack-and-pinion geometry. Hyundai calibrates the steering ratio at 13.7 with 2.6 turns lock-to-lock. The vehicle also maintains a curb-to-curb turning diameter of 37.9 feet, supporting maneuverability in parking environments and urban traffic.
Braking performance is supported by ventilated 12.8-inch front disc brakes and 12.8-inch rear solid disc brakes across all trims. Standard systems include Anti-lock Braking System with Electronic Brake-force Distribution, Brake Assist, Hill Start Assist Control, Downhill Brake Control, Trailer Sway Control, and Vehicle Stability Management. An electric parking brake with Auto Vehicle Hold functionality is also standard across the lineup.
XRT Capability Package and Off-Road Enhancements
The 2026 Hyundai Santa Fe XRT trim introduces multiple exterior and mechanical upgrades focused on towing capability and off-road support. Hyundai equips the XRT exclusively with all-wheel drive and increases ground clearance from 7.0 inches to 8.3 inches. Approach angle increases to 19.3 degrees while the departure angle reaches 21.8 degrees. These changes improve clearance on uneven terrain and steep transitions.
Towing capacity on XRT models increases from 3,500 pounds to 4,500 pounds when properly equipped with trailer brakes. Hyundai also integrates trailer pre-wiring and Trailer Sway Control for improved towing management.

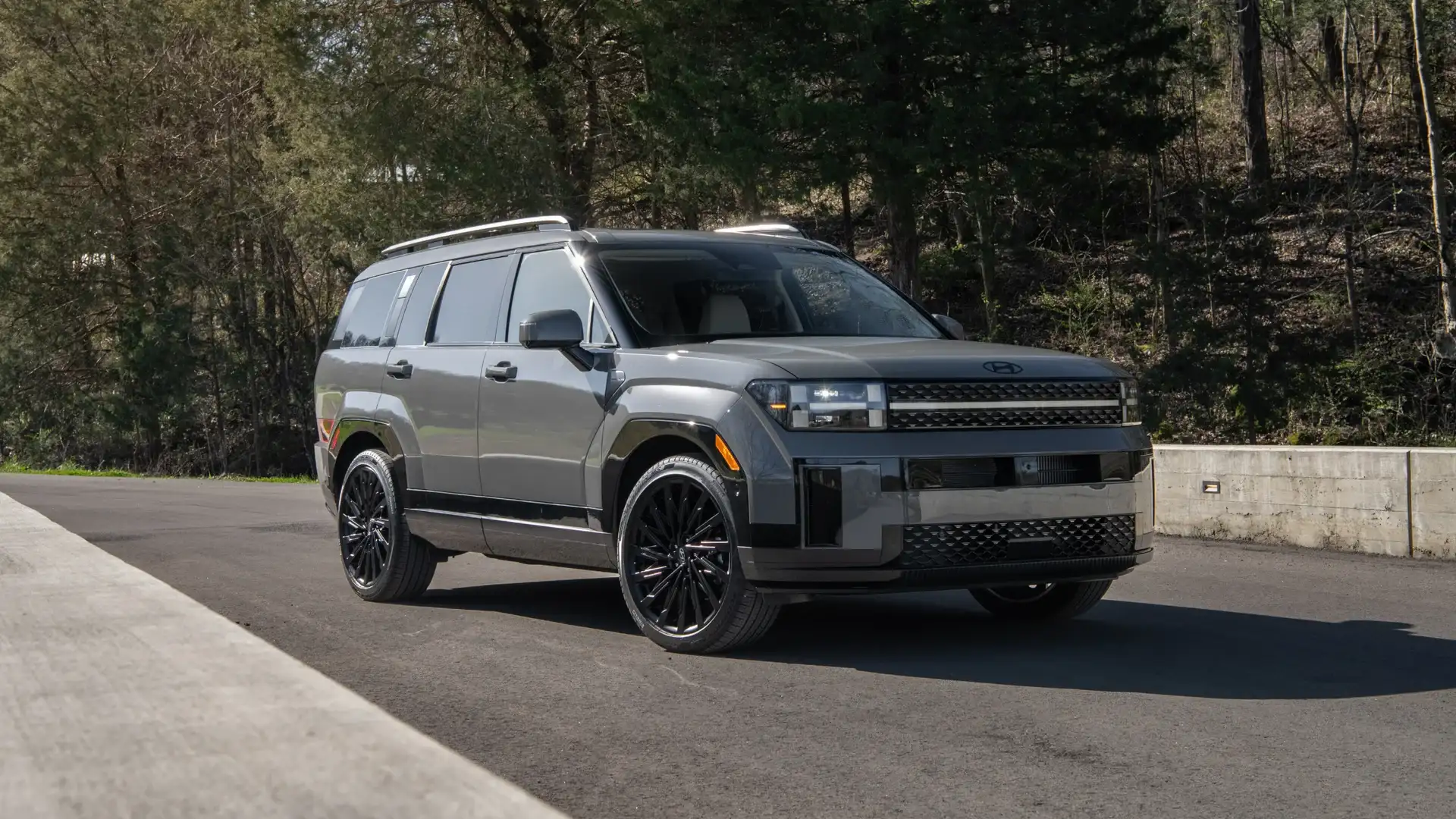

Exterior revisions unique to XRT include black exterior accents, matte-metallic roof rails, a gloss-black grille, black side mirrors, and 18-inch black alloy wheels fitted with Continental all-terrain tires. The interior also receives XRT-exclusive black H-Tex® seating with embroidered badging integrated into the seatbacks.
Exterior Dimensions and Structural Design
The 2026 Hyundai Santa Fe measures 190.2 inches in overall length and rides on a 110.8-inch wheelbase. Width measures 74.8 inches, while the overall height reaches 67.7 inches without roof side rails and 69.7 inches with roof rails equipped. Roof rails support a maximum load capacity of 220 pounds.
Aerodynamic efficiency remains an important part of the design structure, with the 2026 Hyundai Santa Fe maintaining a coefficient of drag of 0.294. The exterior body uses squared dimensions and upright surfaces while integrating practical cargo access and passenger visibility.
Wheel options vary according to trim level. SE and SEL trims use 18-inch alloy wheels with 235/60R18 tires. XRT models use 18-inch wheels fitted with 245/60R18 Continental all-terrain tires. Limited trims receive 20-inch alloy wheels with 255/45R20 tires, while gasoline-powered Calligraphy trims use 21-inch alloy wheels with 245/45R21 Pirelli tires. Hybrid Calligraphy trims use 20-inch alloy wheels.
Lighting systems include LED projector headlights with LED accents, LED daytime running lights, LED taillights, automatic headlights, and High Beam Assist. Hyundai also equips every trim with LED interior cabin lighting and a roof-mounted center high-mount stop lamp.
Cabin Configuration and Passenger Space
The 2026 Hyundai Santa Fe uses a three-row interior configuration designed to maximize passenger flexibility and cargo management. Most trims accommodate seven passengers through second-row bench seating, while Calligraphy models use second-row captain’s chairs for a six-passenger layout. Limited trims offer both six-passenger and seven-passenger configurations.

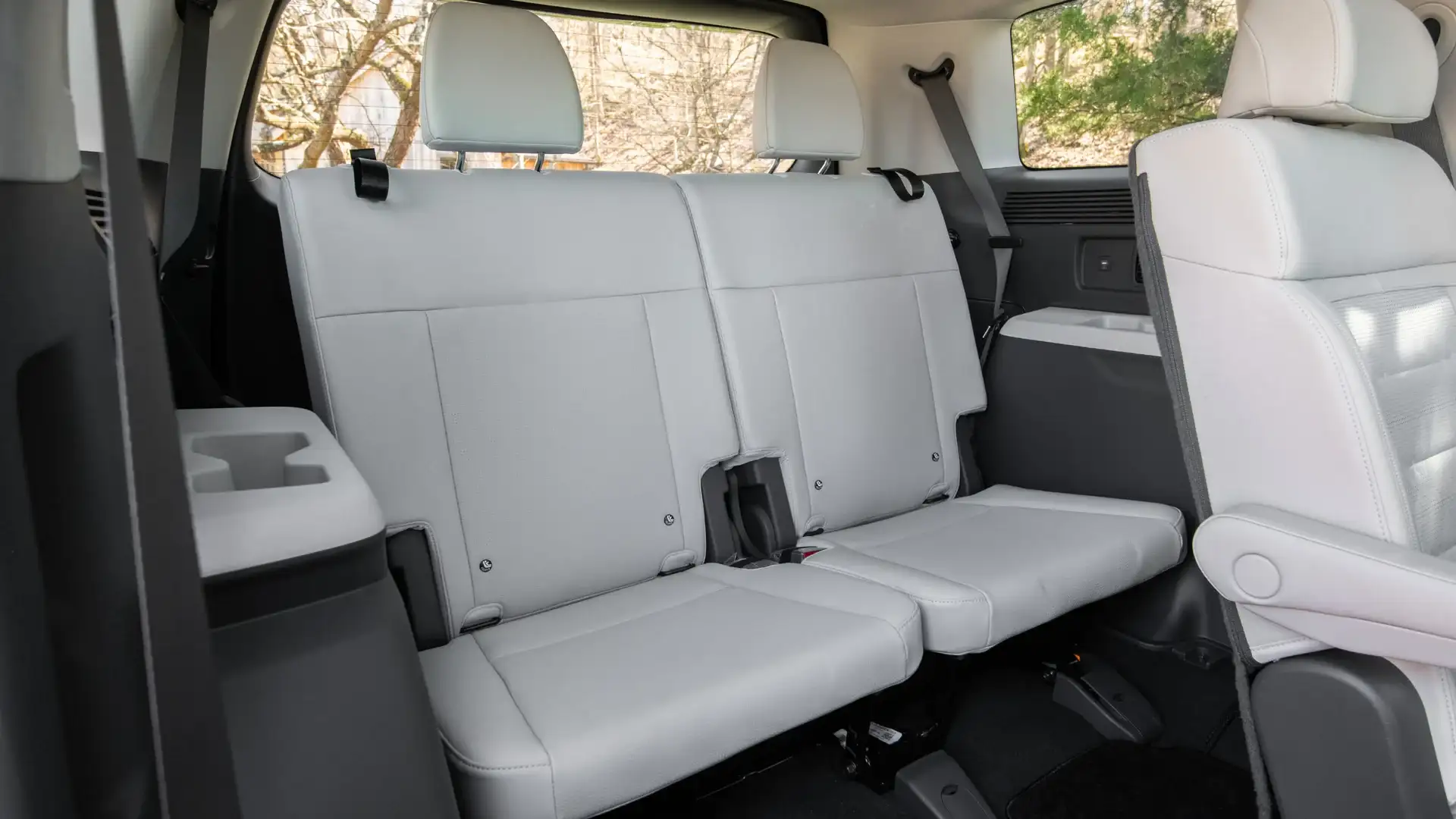

The second row includes reclining and fold-flat capability with adjustable head restraints, while the third row uses a 50/50 split folding design. Hyundai also integrates remote-release folding controls for second-row seats to simplify cargo access.
Passenger space measurements include 44.4 inches of front legroom, 42.3 inches of second-row legroom, and 30.0 inches of third-row legroom. Front shoulder room measures 59.5 inches, while second-row shoulder room reaches 58.1 inches. Headroom measurements remain competitive across all three rows, supporting passenger comfort during long-distance driving.
Cargo capacity measures 14.6 cubic feet behind the third row, 40.5 cubic feet behind the second row, and 79.6 cubic feet behind the front seats. Hyundai also integrates underfloor cargo storage and multiple bottle holders throughout the cabin.
Interior Materials and Seating Features
Seat materials differ according to trim level. SE models use YES Essentials stain-resistant cloth seating surfaces. SEL and XRT trims use H-Tex® trimmed seats, while Limited models receive leather-trimmed seating surfaces. Calligraphy models use Nappa leather-trimmed seats.
Front seating equipment ranges from manually adjustable seating to advanced power-adjustable systems with memory integration. Available features include heated front seats, ventilated front seats, lumbar adjustment, integrated memory settings, and a Driver Relaxation Seat with one-touch functionality. Heated second-row seating is also available on upper trims.

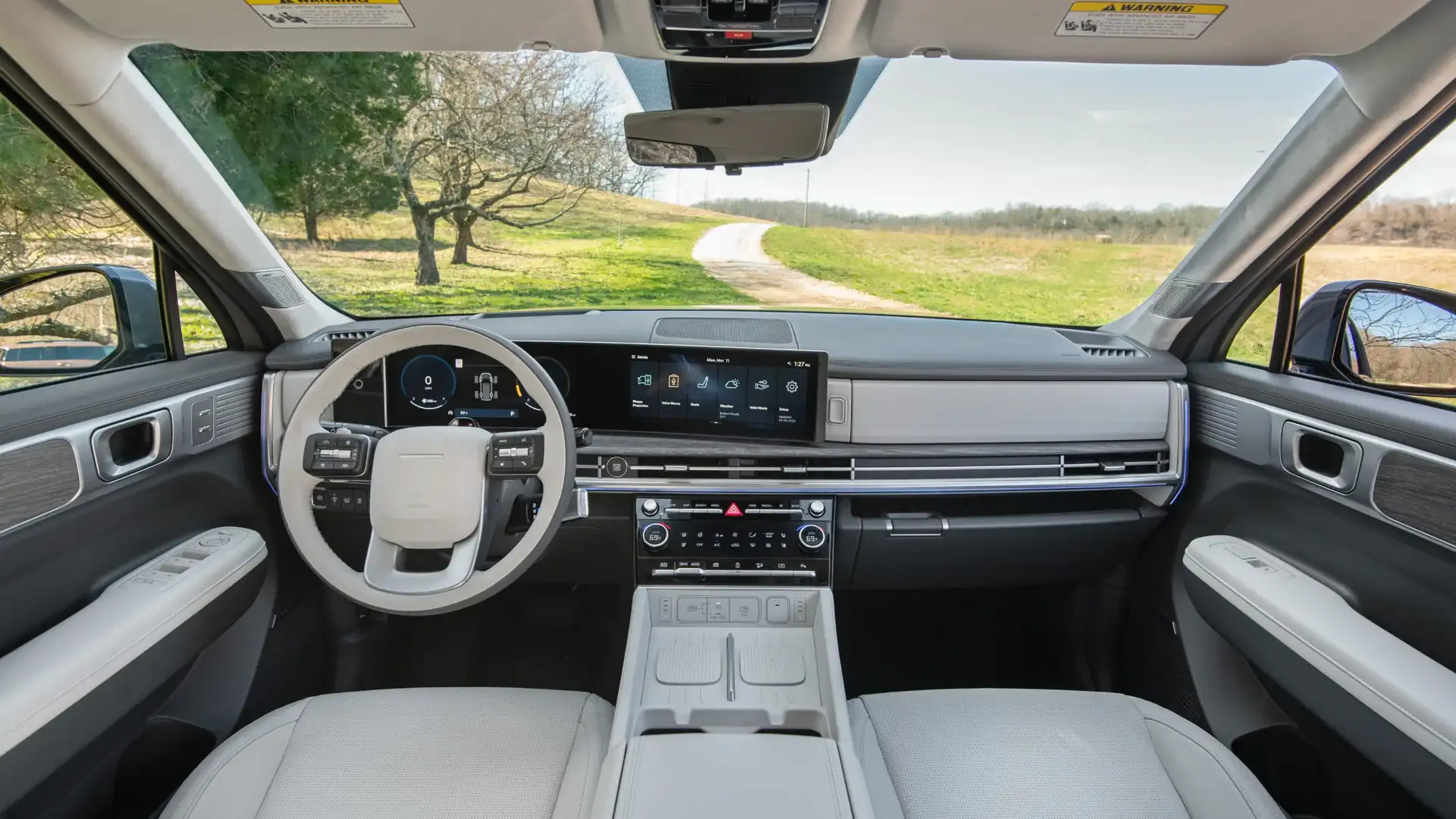

The steering wheel uses a four-spoke layout across the lineup and includes integrated audio, Bluetooth®, cruise control, and multi-information display controls. Heated steering wheel functionality becomes available on Limited and Calligraphy trims.
Additional interior features include dual vanity mirrors with illumination, bi-directional center-console armrest storage, multiple USB charging ports, retractable cargo-area accessories, and available ambient lighting on upper trims.
Infotainment Displays and Digital Connectivity
The 2026 Hyundai Santa Fe integrates a broad range of infotainment and digital connectivity systems throughout the trim lineup. SE and SEL trims use a 12.3-inch display audio system supporting AM/FM/HD Radio™ functionality. XRT, Limited, and Calligraphy trims upgrade to a 12.3-inch widescreen infotainment display with onboard navigation, traffic flow data, incident monitoring, and integrated Wi-Fi hotspot capability.
Wireless Apple CarPlay® and Android Auto™ are standard on all trims. Hyundai also includes Rear Seat Quiet Mode and rearview parking guidance systems throughout the lineup.
Upper trims receive additional technology, including a Bose® premium audio system with 12 speakers, Dynamic Voice Recognition, Hyundai Pay in-car payment capability, Surround View Monitor, and a windshield-type head-up display. Wireless device charging is also available, with dual charging capability integrated on upper trims.
The 2026 Hyundai Santa Fe also supports Bluelink® Connected Car services and over-the-air software update capability. Hyundai Digital Key 2 Premium becomes standard beginning on SEL trims and supports NFC, BLE, and Ultra-Wideband functionality for smartphone-based vehicle access.
Advanced Safety and Driver Assistance Systems
Hyundai equips every 2026 Hyundai Santa Fe with a broad suite of safety and driver-assistance technologies. Standard restraint systems include advanced front airbags, a driver knee airbag, front and second-row side airbags, and side curtain airbags. The cabin also includes adjustable front seatbelt anchors, seatbelt pretensioners, LATCH child-seat anchors, child safety locks, and power window lockout functionality.
Driver-assistance technology includes Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction-turning detection. Lane Keeping Assist, Lane Following Assist 2, Driver Attention Warning, Safe Exit Assist, and Rear Cross-Traffic Collision-Avoidance Assist are also standard throughout the lineup.
Additional systems become available on higher trims, including Blind-Spot Collision-Avoidance Assist, Forward Attention Warning, Remote Smart Parking Assist, Parking Collision-Avoidance Assist Reverse, Blind-Spot View Monitor, and Highway Driving Assist systems. Calligraphy models add Highway Driving Assist 2, which expands adaptive driving functionality during highway travel.
Parking support systems vary by trim and include Park Distance Warning systems with forward, side, and reverse detection capability. Surround View Monitor technology on upper trims improves visibility during parking and low-speed maneuvering.
Fuel Economy, Trailering Capability, and Functional Utility
Gasoline front-wheel-drive 2026 Hyundai Santa Fe models achieve EPA ratings of 20 mpg city, 29 mpg highway, and 24 mpg combined. Gasoline all-wheel-drive trims return 20 mpg city, 28 mpg highway, and 23 mpg combined. XRT models equipped with all-wheel drive are rated at 19 mpg city, 25 mpg highway, and 21 mpg combined.
Hybrid front-wheel-drive models achieve 37 mpg city, 36 mpg highway, and 36 mpg combined. Hybrid all-wheel-drive configurations return 35 mpg city, 34 mpg highway, and 34 mpg combined.
The 2026 Hyundai Santa Fe uses a 17.7-gallon fuel tank across gasoline and hybrid models. Trailer preparation wiring is standard throughout the lineup. Gasoline-powered models tow up to 3,500 pounds with trailer brakes, while XRT models increase towing capability to 4,500 pounds. Hybrid models maintain a 2,000-pound towing limit with trailer brakes.
Disclaimer: 2026 SANTA FE SE / SEL / Limited / Calligraphy FWD: 20 City/ 29 Highway/ 24 Combined MPG. 2026 SANTA FE SE / SEL / Limited / Calligraphy AWD: 20 City/ 28 Highway/ 23 Combined MPG. 2026 SANTA FE XRT AWD: 19 City/ 25 Highway/ 21 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
Schedule a Test Ride Today
Drivers looking for a three-row SUV with turbocharged performance, hybrid efficiency, advanced safety systems, and flexible cargo management can experience the 2026 Hyundai Santa Fe at ALM Hyundai Lumberton near Elizabethtown, NC. Our team can demonstrate the available HTRAC all-wheel-drive system, digital connectivity features, towing capability, and advanced driver-assistance technology during a scheduled visit. A test drive also provides the opportunity to evaluate the suspension tuning, cabin space, and infotainment interface across multiple trim levels. The 2026 Hyundai Santa Fe lineup includes configurations focused on efficiency, passenger comfort, and off-road support through the XRT package. Visitors can compare gasoline and hybrid models directly to determine which configuration best fits their driving requirements.
