2026 Hyundai Santa Fe Hybrid near Fayetteville, NC
The 2026 Hyundai Santa Fe Hybrid presents a refined combination of technical capability and smart hybrid innovation. Featuring advanced mechanical systems and powertrain integration, this model offers a dependable and optimized driving experience. Designed with purpose and built using high-strength materials, it provides drivers with versatile functionality, low emissions output, and balanced handling. Across drivetrain configurations and system components, the 2026 Hyundai Santa Fe Hybrid is engineered to meet demanding performance and operational standards.
Integrated Hybrid Powertrain with Enhanced Torque Delivery
The power system in the 2026 Hyundai Santa Fe Hybrid consists of a Smartstream® 1.6-liter turbocharged GDI inline four-cylinder engine matched with a permanent magnet synchronous electric motor. The combined system delivers a total output of 231 horsepower. Torque performance reaches 271 pound-feet between 1,000 and 4,100 rpm, promoting stable response across a range of driving conditions. The gasoline engine supplies 178 horsepower at 5,500 rpm and 195 pound-feet of torque from 1,500 to 4,500 rpm. The electric motor contributes an estimated 60 horsepower and 195 pound-feet of torque between 1,600 and 2,100 rpm. This layout is supported by a lithium-ion battery system with a 1.49 kilowatt-hour capacity and a maximum voltage of 270 volts.
Power is managed through a six-speed automatic transmission with SHIFTRONIC® manual shift mode and Shift-by-Wire controls. This system is available in both front-wheel drive and HTRAC all-wheel drive configurations. The HTRAC system operates on demand and provides torque distribution in multiple conditions, including Comfort, Eco, Sport, and Smart modes, along with Snow-specific settings and an AWD lock function.
Suspension and Chassis Balance for Multi-Surface Handling
The 2026 Hyundai Santa Fe Hybrid features a MacPherson® strut front suspension paired with a multi-link independent rear suspension. Both front and rear include gas-pressurized shock absorbers with advanced valving and integrated stabilizer bars. This suspension configuration contributes to consistent ride quality and minimized body motion under varied load conditions.
Chassis construction uses a unibody frame composed of high-strength steel. This foundation supports long-term durability and structural rigidity. Ground clearance for the hybrid variant stands at 7.0 inches, with approach and departure angles of 17.4 and 20.9 degrees, respectively. The ramp breakover angle is measured at 15.3 degrees, reinforcing the hybrid’s stable posture during moderate inclines or transitions. The vehicle’s curb weight ranges from 4,431 pounds (FWD) to 4,575 pounds (AWD), with gross vehicle weight ratings of 5,655 and 5,798 pounds, respectively.
Braking and Steering with Integrated Safety Components
Braking is managed through 12.8-inch ventilated front discs and solid rear discs. The system includes ABS with electronic brake-force distribution, an 11.0-inch integrated electric brake booster, brake assist, and hillstart assist control. Downhill brake control and trailer sway control are also standard, improving directional control during load transitions. The parking brake is electric and features automatic vehicle hold functionality.
The steering system uses a column-mounted motor-driven power steering assembly with a rack-and-pinion setup. It offers a 13.7 steering ratio and 2.6 turns lock to lock. The curb-to-curb turning diameter measures 37.9 feet.
Exterior Systems Designed for Efficiency and Utility
Exterior design elements serve functional objectives. Alloy wheels vary by trim and include 18-inch, 20-inch, and 21-inch configurations, paired with Goodyear®, Continental, Kumho, or Pirelli tires. The hybrid variants use a tire mobility kit in place of a temporary spare. LED lighting is standard across the exterior, including projector headlamps, daytime running lights, taillights, and interior cabin lighting. High beam assist and automatic lighting controls are included.
The windshield and front side windows use acoustic laminated glass for noise mitigation. Heated side mirrors feature turn signal indicators and blind spot, and rear cross-traffic collision avoidance assist. Hands-free liftgate operation is standard, along with integrated trailer pre-wiring and a shark-fin roof antenna.
Interior Dimensions and Material Configuration

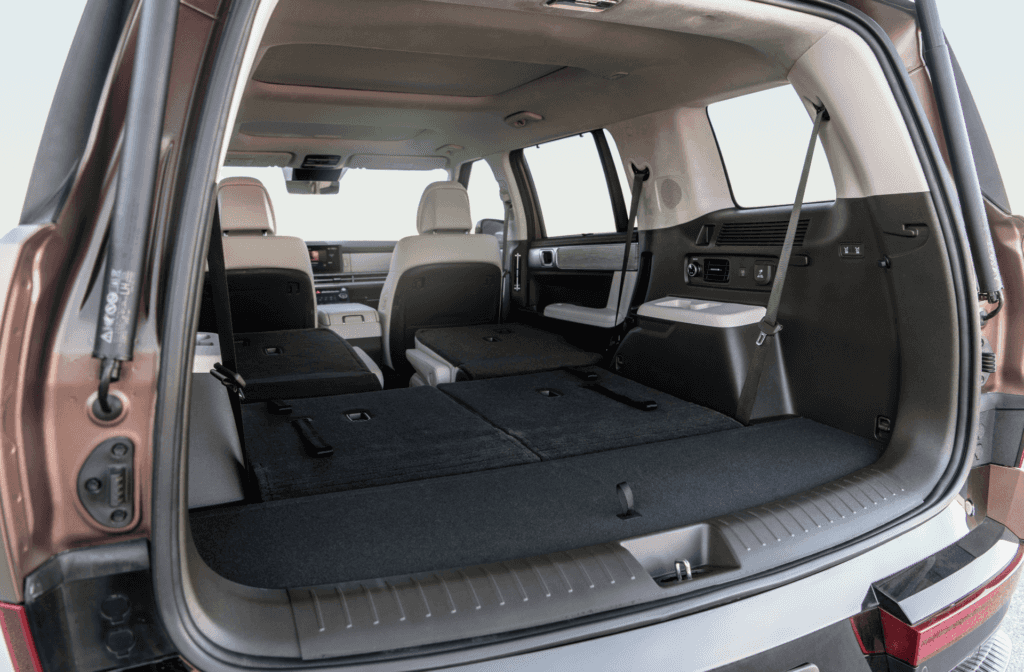

Interior volume for the hybrid model measures 165.6 cubic feet. Passenger volume totals 151.0 cubic feet, with cargo capacity behind the third row at 14.6 cubic feet. Folding the second and third rows expands the space to a maximum of 79.6 cubic feet. Legroom is measured at 44.4 inches in the front, 41.5 inches in the second row, and 30.0 inches in the third row. Shoulder room extends to 59.5 inches in the front, 58.1 inches in the second row, and 53.5 inches in the rear.
Seat configurations vary by trim and include six- or seven-passenger layouts. Material choices span cloth, H-Tex® leatherette, leather, and Nappa leather, depending on the model. Features include power-adjustable driver and passenger seats, available seat ventilation and heating, and integrated driver memory systems. The third-row seat folds in a 50/50 split and includes a room lamp. Rear-seat sunshades and a retractable cargo-area cover are available on upper trims.
Climate and Environmental Controls Across Cabin Zones
The 2026 Hyundai Santa Fe Hybrid includes air conditioning and dual-zone automatic temperature control with auto-defogging functionality. Cabin filtration is standard, and all rows are equipped with air vents. A rear window defrost with a timer is included. The system supports precise climate management across passenger zones using multi-point ventilation and sensor coordination.
Connected Interfaces and Audio Integration

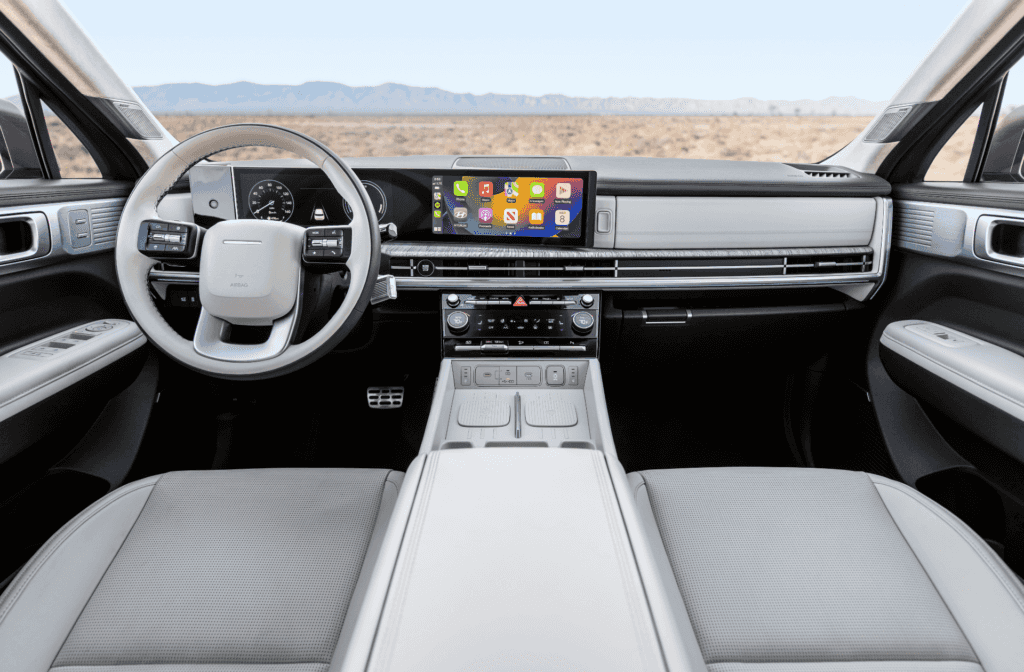

Audio and display systems range from a 12.3-inch display audio setup to an onboard navigation unit with live traffic information and a Wi-Fi hotspot. Wireless Apple CarPlay® and Android Auto™ are supported across all trims. Higher-level trims include a Bose® 12-speaker premium audio system and wireless device charging for supported phones. USB-C high-power charging ports are positioned in the front, second, and third rows.
Other features include dynamic voice recognition, Hyundai Pay for in-car transactions, and rear seat quiet mode. Driver information systems are delivered through either a 4.2-inch display or a 12.3-inch fully digital instrument cluster. Additional available systems include a head-up display, a surround view monitor, and a blind spot view monitor.
Instrumentation, Controls, and Onboard Functions
Instrumentation includes a standard gauge cluster with speedometer, tachometer, coolant temperature, fuel level, and digital odometers. Vehicle indicators cover gear position, smart cruise control, high beam, ABS, and tire pressure monitoring. Interior controls include multi-function steering wheel buttons for audio, phone, cruise, and driver display functions. All models are equipped with tilt and telescoping steering columns. Power windows and locks are standard, with trim-dependent options for front and rear automatic up and down operation.
Driver Assistance and Collision Avoidance Systems
The 2026 Hyundai Santa Fe Hybrid includes an extensive range of active safety systems. Standard features consist of forward collision avoidance assist with pedestrian, cyclist, and junction detection, lane keeping assist, lane following assist, and driver attention warning. Blind spot and rear cross-traffic collision avoidance assist are also included. Higher trims add advanced rear occupant alert with radar detection, remote smart parking assist, forward and side park distance warning, and blind spot collision avoidance assist.
Smart cruise control with stop-and-go functionality is standard on lower trims. Navigation-based smart cruise control appears in mid and upper trims. Lane following assist and safe exit assist are provided across the lineup. Vehicle stability management and traction control work in conjunction with anti-lock braking and electronic stability systems.
Fuel Economy Ratings and Emissions Classification
Fuel efficiency for front-wheel drive hybrid models is estimated at 37 miles per gallon in the city, 36 on the highway, and 36 combined. All-wheel drive variants report 35 miles per gallon city, 34 highway, and 34 combined. Emissions classification falls under SULEV_30 with a smog score of 6. The greenhouse gas score is rated at 7. The fuel tank capacity is 17.7 gallons. The 2026 Hyundai Santa Fe Hybrid is equipped with an emissions control system compliant with current regulatory standards.
Disclaimer: 2026 SANTA FE Hybrid SE, SEL, Limited and Calligraphy FWD: 37 City/36 Highway/36 Combined MPG. 2026 SANTA FE Hybrid SE, SEL, Limited and Calligraphy AWD: 35 City/34Highway/34 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
