2026 Hyundai Santa Fe Hybrid near Elizabethtown, NC
The 2026 Hyundai Santa Fe Hybrid is a three-row SUV that combines a turbocharged gasoline engine with an integrated hybrid system and a wide range of advanced technology, safety, and comfort features. Hyundai designed the model with a unibody structure, independent suspension, available HTRAC All-Wheel Drive, and multiple seating configurations to support everyday versatility. The hybrid powertrain pairs a turbocharged four-cylinder engine with an electric motor and lithium-ion battery system to deliver combined performance and efficiency.
Hybrid Powertrain and Drivetrain
The 2026 Hyundai Santa Fe Hybrid uses a Smartstream® 1.6-liter Turbo GDI DOHC 16-valve inline four-cylinder engine with a displacement of 1,598 cc. The engine features an aluminum block and cylinder head, turbocharging, gasoline direct injection, and a compression ratio of 10.5:1. Output from the gasoline engine reaches 178 horsepower at 5,500 rpm and 195 lb-ft of torque from 1,500 to 4,500 rpm. Hyundai engineers paired the engine with an electric motor to create a total combined system output of 231 horsepower. Combined system torque measures 271 lb-ft and remains available between 1,000 and 4,100 rpm, providing broad torque delivery across the operating range.
Electric Motor and Battery System
The hybrid system incorporates a permanent magnet synchronous motor rated at 44.2 kW, which equates to an estimated 60 horsepower. The electric motor produces 195 lb-ft of torque and contributes additional power during acceleration and low-speed operation. Energy storage comes from a lithium-ion battery pack with a maximum operating voltage of 270 volts. Battery system capacity measures 1.49 kWh, allowing the hybrid system to support efficient power delivery while maintaining the utility expected from a three-row SUV. The electrical system also includes a 13 kW hybrid starter generator integrated into the vehicle’s overall powertrain design.
Transmission and Available All-Wheel Drive
The 2026 Hyundai Santa Fe Hybrid uses a six-speed automatic transmission identified as the A6MF2H-2 unit. SHIFTRONIC® paddle shifters are standard, allowing manual gear selection through steering wheel-mounted controls. Hyundai also equips the model with Shift-By-Wire operation for gear changes. Buyers can choose front-wheel drive or available HTRAC All-Wheel Drive. The HTRAC system provides active on-demand torque distribution and works with multiple drive modes selected through a center-console-mounted controller. Depending on the selected mode, torque distribution varies to support different driving conditions, including Snow mode operation.
Chassis, Suspension, Steering, and Braking Systems
The 2026 Hyundai Santa Fe Hybrid uses a unibody body structure constructed primarily from high-strength steel. This layout supports the hybrid powertrain while providing the rigidity required for three-row passenger accommodation. Hyundai combines this structure with independent front and rear suspension systems designed to promote ride quality and handling stability. Gas-pressurized shock absorbers with advanced valving are used at both ends of the vehicle. Stabilizer bars are also fitted front and rear to help maintain composure during cornering and directional changes.
Suspension Design
Front suspension components consist of a MacPherson® strut arrangement with coil springs. In the rear, Hyundai employs a multi-link independent design with separated springs and shocks. This configuration helps isolate road inputs while supporting passenger comfort and vehicle stability. Advanced shock absorber valving contributes to controlled suspension movement across varying road surfaces.
Steering Characteristics
The 2026 Hyundai Santa Fe Hybrid uses Motor Driven Power Steering with a column-mounted rack-and-pinion design. Steering ratio measures 13.7, while the system requires 2.6 turns from lock to lock. Curb-to-curb turning diameter measures 37.9 feet, contributing to maneuverability in parking areas and urban environments. Electric power assistance reduces steering effort while maintaining predictable responses.
Braking Hardware and Control Systems
Four-wheel disc brakes are standard on the 2026 Hyundai Santa Fe Hybrid. Ventilated front discs measure 12.8 inches in diameter, while the rear uses 12.8-inch solid discs. Anti-lock braking with Electronic Brake-force Distribution operates through four wheels, four channels, and four sensors. Additional systems include Brake Assist, Hillstart Assist Control, Downhill Brake Control, and Trailer Sway Control. Hybrid models also use an integrated electric brake booster. An electric parking brake with Auto Vehicle Hold functionality further enhances convenience and control during stops.

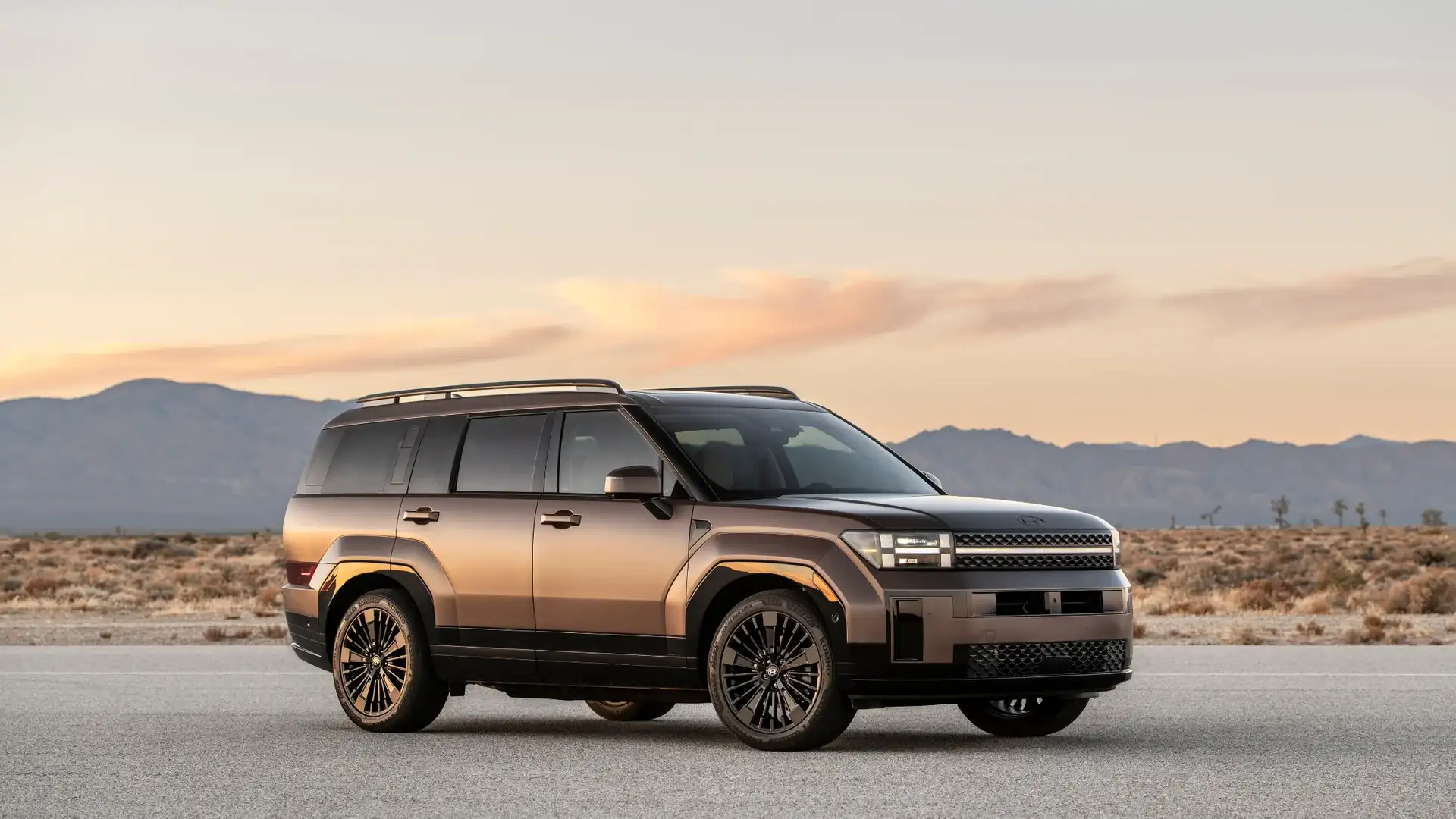

Exterior Features and Utility Equipment
The exterior of the 2026 Hyundai Santa Fe Hybrid combines lighting technology, utility features, and trim-specific equipment. LED projector headlights with LED accents are standard throughout the lineup. Additional lighting equipment includes LED daytime running lights, automatic headlights, LED taillights, and High Beam Assist. LED interior cabin lighting and a roof-mounted center high-mount stop lamp are also included.
Wheels, Tires, and Exterior Components
SE Hybrid and SEL Hybrid models use 18-inch alloy wheels fitted with 235/60 R18 tires. Limited Hybrid and Calligraphy Hybrid trims use 20-inch alloy wheels with 255/45 R20 tires. Hybrid models are equipped with a tire mobility kit according to trim application. Exterior glass includes solar front glass, privacy glass for rear areas, and acoustic laminated windshield and front side glass. Heated side mirrors are standard, while side mirrors with integrated LED turn signal indicators are included on higher trims. Blind-Spot and Rear Cross-Traffic Collision Avoidance Assist functions are integrated into the mirror system.
Functional Exterior Equipment
The 2026 Hyundai Santa Fe Hybrid includes a body-color rear spoiler integrated with the center high-mount stop lamp. A hands-free smart liftgate with adjustable opening height is standard throughout the lineup, simplifying cargo access. Roof rails are available according to trim application, while trailer pre-wiring connections are standard. A shark-fin roof antenna contributes to exterior integration. Rain-sensing windshield wipers are available on higher trims, adding automated operation during changing weather conditions.
Interior Accommodations and Comfort
The 2026 Hyundai Santa Fe Hybrid offers multiple seating configurations depending on trim level. Seven-passenger seating is available on several models, while upper trims provide six-passenger layouts. Seat materials vary from stain-resistant cloth to H-Tex® upholstery, leather-trimmed seating surfaces, and Nappa leather in the highest trim. The cabin incorporates a three-row arrangement designed to maximize passenger space and versatility. Fold-flat second-row seats and a folding third-row seat expand cargo flexibility. Underfloor cargo storage and remote second-row seat release functions further improve usability.

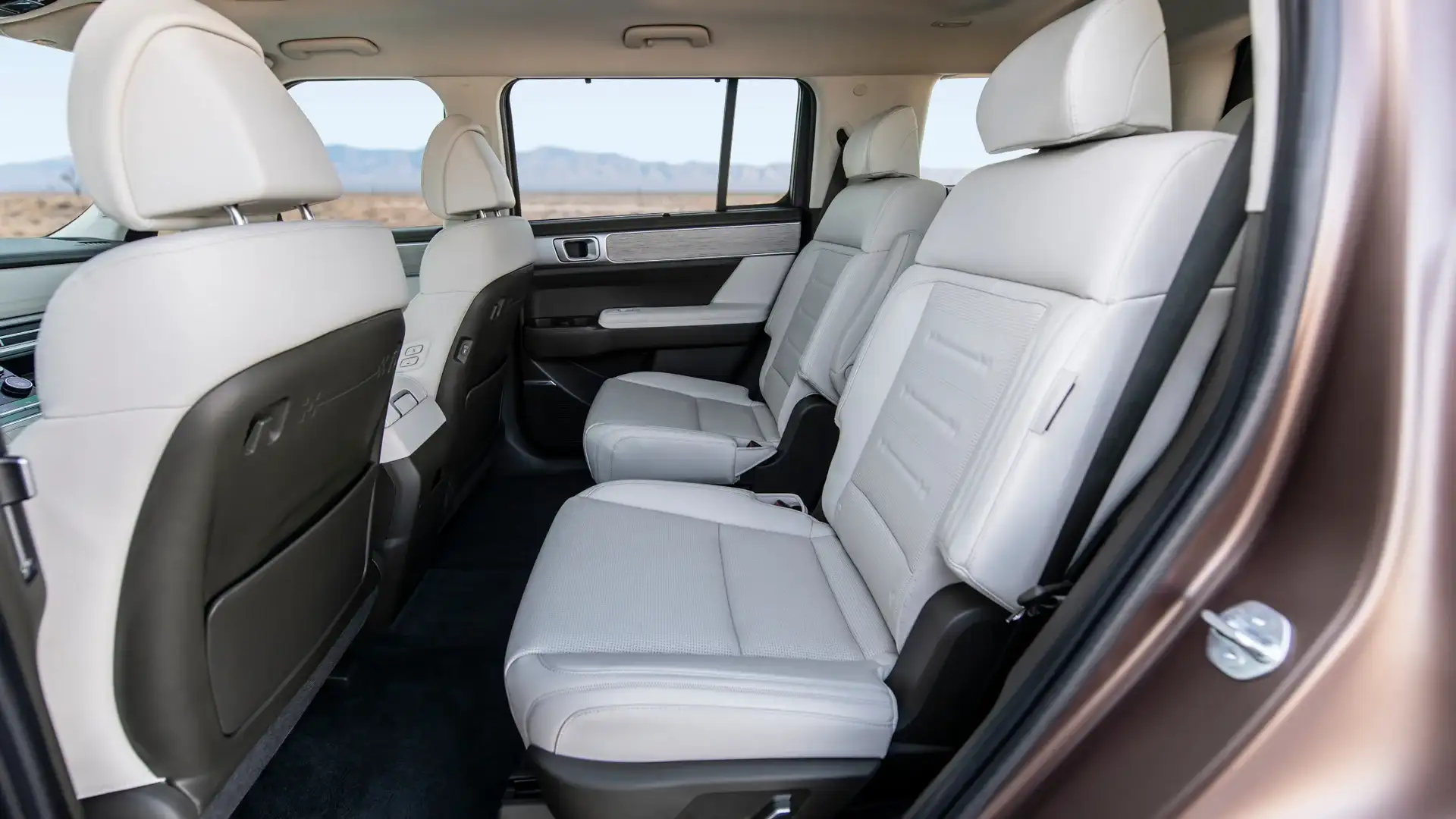

Front and Rear Seating Features
Heated front seats are available across most trims, while upper trims add ventilated front seating. Certain versions include enhanced driver seat adjustment and integrated memory functions. The Calligraphy Hybrid introduces a driver relaxation seat with a one-touch setting. Heated second-row seats are included on select trims to extend comfort to rear passengers. Adjustable head restraints and reclining second-row seating contribute to passenger accommodation.
Climate Control and Interior Amenities
Air conditioning and cabin filtration systems are standard across the lineup. Dual automatic temperature control is included according to trim and hybrid configuration. Rear air vents serve both second-row and third-row passengers on higher trims. The cabin also includes integrated storage areas, bottle holders, cupholders, and a two-level center console armrest with bidirectional opening. Leather-wrapped steering wheels are standard, while heated steering wheels are included on upper trims. Additional amenities include illuminated vanity mirrors, rear window defrosters, and available rear side-window sunshades.

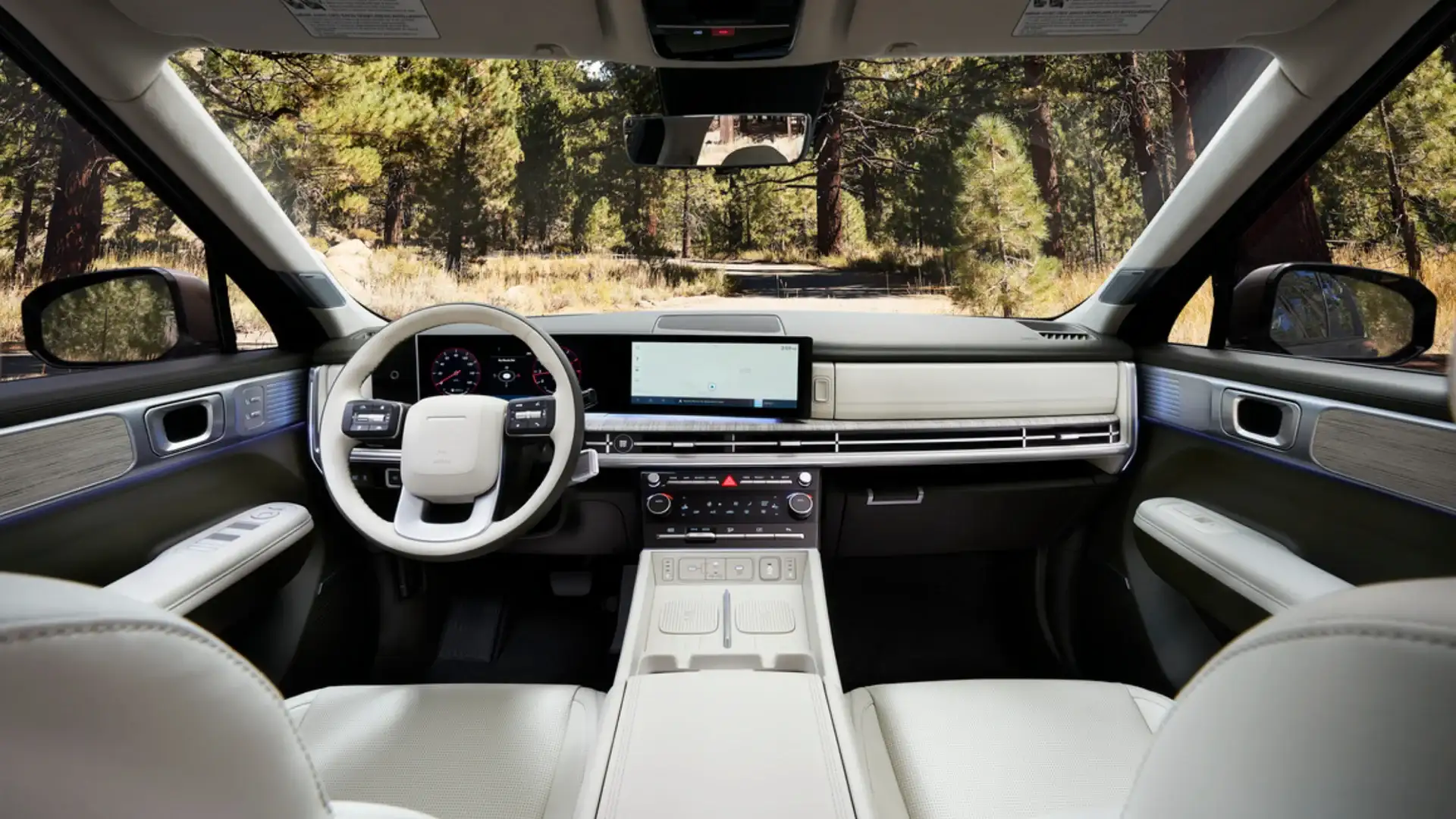

Infotainment and Connected Technology
Technology features play a significant role in the 2026 Hyundai Santa Fe Hybrid. Entry models use a 12.3-inch Display Audio system with AM, FM, and HD Radio™ capability. Higher trims receive a 12.3-inch widescreen infotainment system with onboard navigation and traffic flow information. Wi-Fi hotspot capability is integrated into the navigation-equipped system. Wireless Apple CarPlay® and Android Auto™ are standard across all hybrid trims. Dynamic Voice Recognition and Hyundai Pay functionality are included on higher models.
Audio Systems and Digital Displays
Higher trim levels offer a Bose® premium audio system with 12 speakers. Rear Seat Quiet Mode is standard and helps manage audio output for passengers in different seating areas. Limited Hybrid and Calligraphy Hybrid models add a Surround View Monitor for improved visibility during parking maneuvers. A head-up display is available on the Calligraphy Hybrid, projecting information onto the windshield. The instrument panel includes either a 4.2-inch multi-information display or a 12.3-inch digital instrument cluster, depending on trim level. Adjustable illumination settings allow drivers to customize display brightness.
Connectivity and Convenience Features
Bluelink® Connected Car services are standard across the hybrid lineup. Over-the-air update capability allows compatible systems to receive software updates. The Hyundai Digital Key 2 Premium with NFC, BLE, and UWB technology is available on most trims. Wireless charging capability is included beginning with SEL Hybrid, while higher trims provide dual charging pads. High-power USB charging ports are distributed throughout the cabin, including additional third-row ports on upper trims.
Safety and Driver Assistance Technologies
The 2026 Hyundai Santa Fe Hybrid incorporates multiple passive and active safety systems. Airbag coverage includes advanced front airbags, a driver knee airbag, front and second-row side airbags, and side curtain airbags. Seatbelt pretensioners and load limiters contribute to occupant protection, while LATCH anchors support child seat installation. Rear child safety locks and power window lockout functions are included. Additional passive safety features include front crumple zones, 2.5-mph bumpers, an electronic shift lock system, an immobilizer, and an anti-theft system integrated with remote keyless entry.
Active Safety Systems
Electronic Stability Control, Traction Control System, Vehicle Stability Management, and Tire Pressure Monitoring are standard equipment. Forward Collision-Avoidance Assist includes pedestrian, cyclist, and junction turning detection capabilities. Additional standard technologies include Lane Keeping Assist, Driver Attention Warning, Safe Exit Assist, and Lane Following Assist 2. Blind-Spot Collision-Avoidance Warning and Rear Cross-Traffic Collision-Avoidance Assist are included throughout the lineup. Forward Attention Warning with driver monitoring capability is added on higher trims.
Parking and Highway Assistance Features
Upper trims add additional parking technologies and advanced driver assistance systems. Parking Collision-Avoidance Assist for reverse operation is available on Limited Hybrid and Calligraphy Hybrid models. Enhanced Park Distance Warning systems expand monitoring coverage around the vehicle. Remote Smart Parking Assist allows entry and fore-and-aft movement functions on selected trims. Highway Driving Assist I is included on XRT and Limited Hybrid models, while Calligraphy Hybrid receives Highway Driving Assist 2.
Dimensions, Cargo Capacity, Efficiency, and Towing
The 2026 Hyundai Santa Fe Hybrid rides on a 110.8-inch wheelbase and measures 190.2 inches in overall length. Width measures 74.8 inches, while overall height reaches 67.7 inches or 69.7 inches when equipped with roof side rails. Ground clearance measures 7.0 inches on hybrid models. Passenger volume totals 151.0 cubic feet, while total interior volume reaches 165.6 cubic feet. Cargo capacity measures 79.6 cubic feet behind the front seats, 40.5 cubic feet behind the second row, and 14.6 cubic feet behind the third row. Roof rails support a load capacity of 220 pounds.
Fuel Economy and Trailering Capability
Front-wheel-drive hybrid models are rated at 37 mpg in city driving, 36 mpg on the highway, and 36 mpg combined. All-Wheel Drive versions are rated at 35 mpg city, 34 mpg highway, and 34 mpg combined. The fuel tank holds 17.7 gallons. Maximum trailer capacity with trailer brakes is rated at 2,000 pounds, while towing capacity without trailer brakes is 1,650 pounds. Trailering pre-wiring is standard equipment.
Disclaimer: *2026 SANTA FE Hybrid SE, SEL, Limited and Calligraphy FWD: 37 City/36 Highway/36 Combined MPG. 2026 SANTA FE Hybrid SE, SEL, Limited and Calligraphy AWD: 35 City/34Highway/34 Combined MPG. All figures are EPA estimates and for comparison purposes only. Actual mileage may vary with options, driving conditions, driving habits and vehicle’s condition.
