2026 Hyundai Palisade near Fayetteville, NC
The 2026 Hyundai Palisade presents a detailed engineering package focused on mechanical strength, powertrain versatility, structural refinement, interior functionality, and advanced safety systems. This model delivers two distinct engine choices that support different driving needs while maintaining consistency in performance characteristics and drivetrain behavior. With a body structure composed mainly of high-strength steel and a suspension system designed for controlled movement, the 2026 Hyundai Palisade supports both stability and occupant comfort. Its technology integrations expand across audio, connectivity, and driver assistance functions, creating an environment shaped by precision rather than interpretation. The following sections examine the technical features of the 2026 Hyundai Palisade in a structured and accurate format based fully on its published specifications.
Powertrain Engineering and System Output
The 3.5 MPI and GDI V6 engine provides 287 horsepower at 6400 rpm and 260 pound-feet of torque at 5000 rpm. This engine uses an aluminum block and head with a 12.3 to 1 compression ratio and a bore and stroke of 92.0 by 87.0 millimeters. Idle Stop and Go functionality is included to support fuel efficiency during stationary periods. The engine operates using gasoline direct injection and is designed to run on regular unleaded fuel. A single exhaust outlet positioned on the passenger side completes the layout.
The available 2.5-liter Turbo GDI hybrid engine produces 258 horsepower at 5800 rpm and 260 pound-feet of torque from 1800 to 4500 rpm. It pairs with a permanent magnet synchronous electric motor system that provides a total hybrid output of 329 horsepower and 339 pound-feet of torque. The electric components include a 300-volt lithium-ion battery with a 5.5 amp-hour rating and a system capacity of 1.65 kilowatt-hours. The P1 and P2 motors produce a combined electric power output of 64 kilowatts. This system provides additional torque support at lower speeds along with improved operating efficiency.
Transmission and Drive Configuration
The V6 engine pairs with an eight-speed automatic transmission identified as A8LF1 that is controlled through a shift-by-wire interface with paddle shifters. The hybrid model uses a six-speed automatic transmission that integrates both the P1 and P2 electric motors. Gear ratios vary between the powertrains. The V6 transmission offers a first gear ratio of 4.808 and an eighth gear ratio of 0.648. The hybrid transmission uses a first gear ratio of 5.269 and a sixth gear ratio of 0.790. Final drive ratios are also engineered to match power delivery, with the V6 offering 3.510 for front-wheel drive and 3.648 for all-wheel drive. The hybrid uses a constant 3.759 ratio for both configurations.
Front-wheel drive is standard for both powertrains. HTRAC all-wheel drive is available, and in the XRT PRO it is included as standard equipment. Drive modes are selected using dashboard-mounted controls. Eco, Sport, and My Drive modes are available on all configurations. Terrain modes for mud, snow, and sand are exclusive to all-wheel-drive models. A tow mode selection is also included on all models to manage transmission behavior during hauling. The XRT PRO adds an electronic limited slip differential for improved traction under varying conditions.
Chassis Dynamics and Structural Design
The 2026 Hyundai Palisade features a unibody construction formed primarily from high-strength steel. This structure supports rigidity and consistency across different load conditions. The steering system uses motor-driven power steering with a column-mounted rack and pinion layout. The standard steering ratio is 14.3 to 1, while the XRT PRO adopts a quicker 13.3 to 1 ratio. Steering requires 2.8 turns from lock to lock. The turning diameter is measured at 39.2 feet and slightly narrower at 39.0 feet for the XRT PRO.
The suspension system is designed with a MacPherson® strut layout in the front along with coil springs and a stabilizer bar. The rear system uses a multi-link independent structure with separated springs and shocks. A stabilizer bar is included along with a self-leveling rear suspension to maintain consistent ride height. Ventilated front brake discs measure 345 by 30 millimeters, while solid rear discs measure 325 by 20 millimeters. The braking system incorporates ABS, Electronic Brake Force Distribution, Brake Assist, Hillstart Assist Control, and Downhill Brake Control on all-wheel-drive models. The parking brake is electronically controlled with an Auto Vehicle Hold feature.
Exterior Functional Design and Materials
The wheel range spans from 18-inch alloys for most base and mid trims to 20-inch and 21-inch wheels on upper trims. Tire sizes vary to match wheel dimensions and vehicle performance requirements. All models include LED headlights, LED daytime running lights, LED rear combination lamps, door handle welcome lighting, and high beam assist. Most trims use acoustic side glass for the front doors, while the Limited and Calligraphy apply acoustic glass to both front and rear doors. A shark fin roof antenna, rear spoiler, and tow preparation equipment are included across all trims.
The exterior glass package includes solar control for the windshield and front doors and privacy glass for rear positions. Roof rails are available in either black or silver depending on trim and support up to 220 pounds of load. A hands-free smart liftgate is included beginning at the SEL trim. Sunroof availability varies, with single-pane options on some trims and dual-pane designs on the Limited and Calligraphy. The trailering package is included as standard across all trims and features pre-wiring, heavy-duty engine and transmission cooling, and sway control. An OEM trailer hitch and integrated trailer brake controller are available on select trims.
Interior Systems and Functional Space

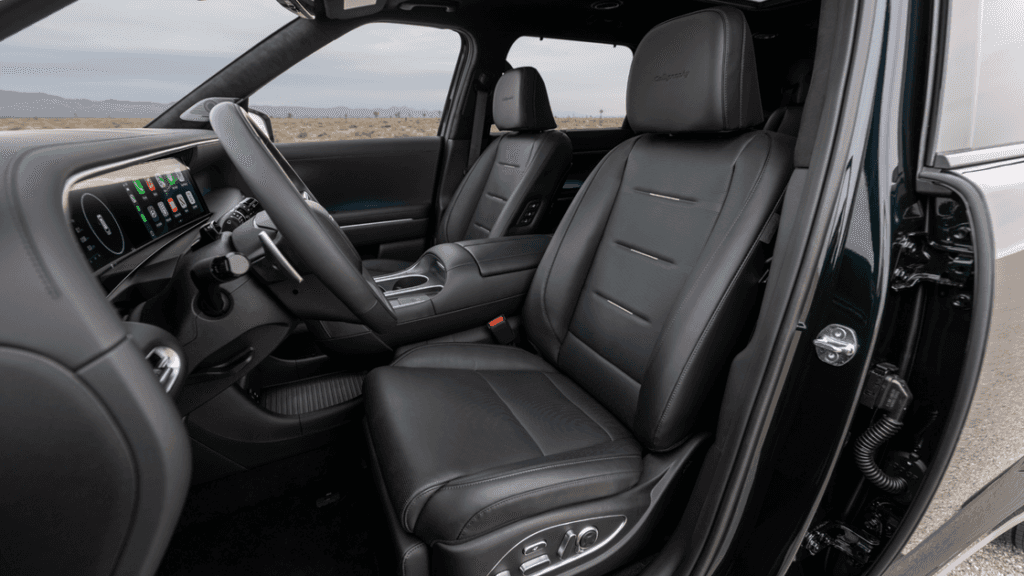

Seating capacity ranges from seven to eight passengers based on trim and selected second-row seating. Materials include cloth on the SE, H-Tex® leatherette on the SEL and SEL Premium, leather on the Limited, and premium Nappa leather on the Calligraphy. The driver seat ranges from a six-way manual configuration to an eight-way power version with available four-way lumbar adjustment and memory settings. Ventilated front seats are available on several trims. Relaxation Mode, Ergo Motion seating, and leg cushion extension are exclusive to the Calligraphy.

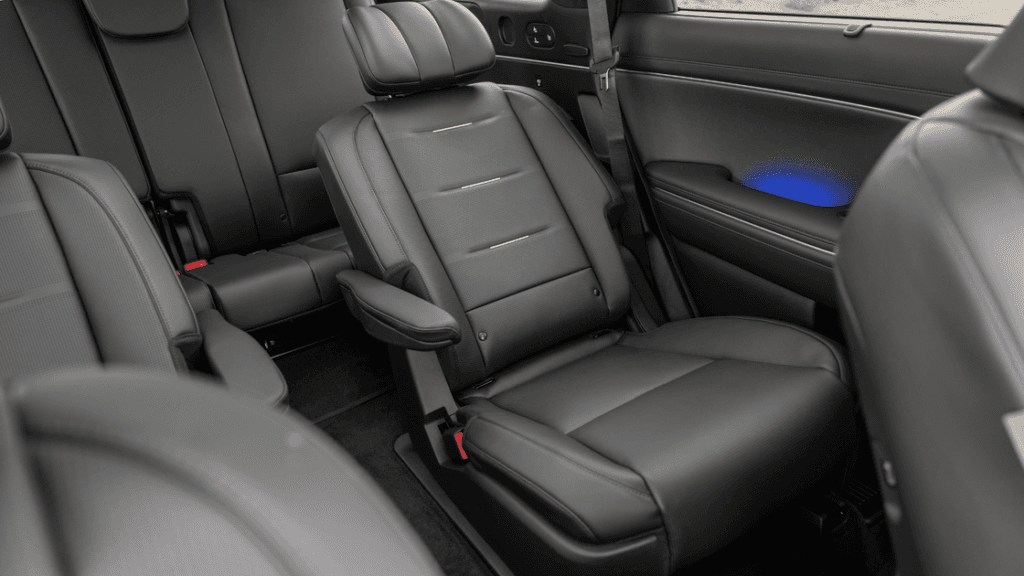

Rear seating varies with trim, offering heated and ventilated second-row seats on upper trims along with wing-out headrests. A power-adjustable second row is exclusive to the Calligraphy. Third-row power folding, unfolding, reclining, and sliding features are available on upper trims along with available third-row heating. Cargo capacity measures 86.7 cubic feet behind the front seats, 46.3 cubic feet behind the second row, and 19.1 cubic feet behind the third row. An underfloor cargo compartment provides additional storage.
Integrated Technology and Display Features
All trims include a 12.3-inch touchscreen with onboard navigation. Wireless Apple CarPlay® and Android Auto™ are supported across all models. A Bose® 14-speaker premium audio system is available on the XRT PRO, Limited, and Calligraphy. A head-up display is exclusive to the Calligraphy. USB-C power ports are positioned throughout all rows. Surround View Monitor is available starting at SEL Premium. A built-in dashcam is exclusive to the Calligraphy. Wireless device charging at 15 watts is included on most trims. Rear Seat Quiet Mode, Passenger Talk, HD Radio™, SiriusXM®, and dynamic voice recognition are standard across the lineup.
Safety Architecture and Driver Assistance Technologies
The airbag system includes advanced front airbags with occupant classification sensors, a front center airbag, a driver knee airbag, side impact airbags for the first and second rows, and side curtain airbags with rollover detection. Seatbelt pretensioners and load limiters are applied to all outboard positions across all three rows. Child safety locks, LATCH anchors, illuminated second-row latches, and a power window lockout button are standard.
Active safety technologies include Forward Collision Avoidance Assist with multiple detection capabilities, Lane Keeping Assist, Lane Following Assist 2, Driver Attention Warning, Forward Attention Warning, Safe Exit Assist, Blind Spot Collision Warning, and Rear Cross Traffic Collision Avoidance Assist. Higher trims include Blind Spot Collision Avoidance Assist, Parking Collision Avoidance Assist, Parking Distance Warning for front, rear, and side areas, and radar-based Advanced Rear Occupant Alert. Highway Driving Assist I is standard across most trims, while Highway Driving Assist II is exclusive to the Calligraphy. Trailer Sway Control is also included across all models.
Schedule a Test Ride Today
To experience the full range of mechanical features, engineering systems, and advanced technology included in the 2026 Hyundai Palisade, a test drive provides a direct understanding of how each component operates together. The combination of engine performance, structural design, interior capability, and safety features offers a detailed display of consistent engineering. A test drive also allows you to assess acceleration behavior, steering response, visibility systems, and the operation of driver assistance technologies with clarity. Our team can guide you through each system so you can evaluate the model based on factual performance attributes rather than assumptions. You are invited to schedule your visit with ALM Hyundai Lumberton near Fayetteville, NC, and explore the 2026 Hyundai Palisade in person.
