2026 Hyundai Palisade near Elizabethtown, NC
The 2026 Hyundai Palisade is a three-row SUV engineered with a wide range of powertrain options, advanced driver assistance technologies, versatile seating configurations, and integrated connectivity features. Available with either a 3.5-liter V6 engine or a 2.5-liter turbocharged hybrid powertrain, the model supports front-wheel drive and HTRAC All-Wheel Drive configurations while offering multiple drive modes and towing-related equipment. Its unibody structure uses high-strength steel and works with independent suspension systems and electronic control technologies designed to support stability and overall driving behavior.
Powertrain and Engine Specifications
The 2026 Hyundai Palisade offers two engine configurations that provide distinct performance characteristics. Hyundai equips the lineup with either a 3.5-liter MPI and GDI DOHC 24-valve V-type six-cylinder engine or a 2.5-liter Turbo-GDI DOHC 16-valve inline four-cylinder engine paired with hybrid components. Both engines utilize gasoline direct injection and are designed to operate on regular unleaded fuel. Idle Stop & Go technology is included, and a hood insulator contributes to overall refinement. Aluminum construction is used for the engine block and cylinder head, supporting durability and weight management.
3.5-Liter V6 Engine
The naturally aspirated 3.5-liter V6 displaces 3,470 cc and generates 287 horsepower at 6,400 rpm. Peak torque reaches 260 lb-ft at 5,000 rpm, providing output across the operating range of the engine. Bore and stroke measurements are 92.0 mm by 87.0 mm, and the engine uses a compression ratio of 12.3:1. A single exhaust outlet is positioned on the passenger side of the vehicle. Supporting systems include a distributorless ignition system, a 12-volt 2.0-kW starter, and a 13.5-volt 180-amp alternator.
Hybrid Powertrain System
Hybrid versions of the 2026 Hyundai Palisade combine a 2.5-liter turbocharged engine with permanent magnet synchronous electric motors. Total system output reaches 329 horsepower and 339 lb-ft of torque. The P1 electric motor produces 17 horsepower and 75 lb-ft of torque, while the P2 motor contributes 72 horsepower and 195 lb-ft of torque. Energy storage is provided by a lithium-ion battery operating at 300 volts with a capacity of 5.5 Ah. Battery system capacity is rated at 1.65 kWh, and battery power output reaches 64 kW.
Transmission and Drivetrain Systems
The 2026 Hyundai Palisade incorporates transmission and drivetrain technologies that complement the available engine choices. Front-wheel drive is standard, while HTRAC active on-demand All-Wheel Drive is available across the lineup and standard on XRT PRO models. Multiple operating modes allow drivers to tailor vehicle behavior according to conditions and preferences.
Transmission Configurations
Models equipped with the 3.5-liter V6 use an eight-speed automatic transmission identified as the A8LF1. Hybrid models employ a six-speed automatic transmission integrated with P1 and P2 electric motors through the TMED-II system. Shift-by-Wire operation is standard and works with steering wheel-mounted paddle shifters. A dedicated Tow mode can be selected through dashboard controls. The XRT PRO trim also includes an electronic limited-slip differential designed to improve traction.
Drive Modes and Terrain Management
Drive Mode Select is controlled through dashboard-mounted buttons and a toggle switch. Drivers can choose between Eco, Sport, and My Drive settings to alter vehicle responses. Models equipped with All-Wheel Drive add Terrain Mode Select with dedicated Mud, Snow, and Sand settings. These controls are designed to support traction and vehicle behavior in varying surface conditions.
Chassis Engineering and Vehicle Dynamics
The 2026 Hyundai Palisade utilizes a unibody structure with primary construction based on high-strength steel. This design supports overall structural integrity while serving as the foundation for the suspension and steering systems. Independent front and rear suspension layouts contribute to ride quality and handling characteristics.
Suspension Design
The front suspension uses a MacPherson® strut arrangement with coil springs and a stabilizer bar. Rear suspension components employ a multi-link independent configuration with separated springs and shock absorbers. Rear stabilizer bars are standard across the lineup. Self-leveling suspension technology is also incorporated.
Steering System
Motor Driven Power Steering is used throughout the lineup and features a rack-and-pinion design with a column-mounted configuration. Most models operate with a 14.3:1 steering ratio, while the XRT PRO uses a 13.3:1 ratio. Steering travel requires 2.8 turns from lock to lock. Turning diameter measures 39.2 feet on most models and 39.0 feet on the XRT PRO.
Braking and Vehicle Control Systems
The braking system of the 2026 Hyundai Palisade incorporates four-wheel disc brakes and electronic control technologies. Ventilated front discs measure 345 x 30 mm, while rear solid discs measure 325 x 20 mm. Anti-lock braking functionality operates with four channels and four sensors. Electronic Brake-force Distribution works alongside the anti-lock system to manage braking force.
Additional Brake Technologies
Brake Assist is standard throughout the lineup and works with a 10.5-inch brake booster that uses a 10.0:1 boosting ratio. Hillstart Assist Control is included to support vehicle launches on inclines. Models equipped with All-Wheel Drive also incorporate Downhill Brake Control, which can be selected by the driver. The electronic parking brake includes Auto Vehicle Hold functionality.
Exterior Features and Functional Equipment
The 2026 Hyundai Palisade incorporates a range of exterior components intended to support visibility, utility, and convenience. Wheel sizes range from 18-inch alloys to 21-inch alloys, depending on trim level. Tire configurations vary according to wheel size and model application. Compact spare tires are provided on several internal combustion models, while Tire Mobility Kits are used on selected configurations.
Lighting Systems
LED lighting technology is used extensively throughout the vehicle. Standard equipment includes LED center positioning lights, LED daytime running lights, projector LED headlights, and LED rear combination lamps. Door handle, welcome lights, and LED cabin illumination contribute to visibility during entry and exit. Automatic headlights are standard, and High Beam Assist provides additional convenience. A roof-mounted center high-mount stop lamp is integrated into the rear spoiler assembly.
Utility and Trailering Features
The hands-free Smart Liftgate provides quick opening capability, automatic opening functions, and adjustable height settings. Roof rails are available with different finishes depending on the trim level. A trailering package is included and incorporates trailer prewiring, heavy-duty engine and transmission coolers, and sway control technology. OEM-installed tow hitches are offered on selected models. Shark-fin antennas and available cross bars further contribute to utility and functionality.
Interior Comfort and Seating Configurations
The cabin of the 2026 Hyundai Palisade is designed to accommodate either seven or eight occupants, depending on trim level and seating configuration. Upholstery choices include cloth, H-Tex® leatherette, leather-trimmed seating surfaces, and Premium Nappa Leather. Seating arrangements provide flexibility while supporting passenger comfort throughout all three rows. Multiple adjustments and climate features are available across the lineup. Storage compartments and fold-flat seating contribute to cargo versatility.
Front Seating Features

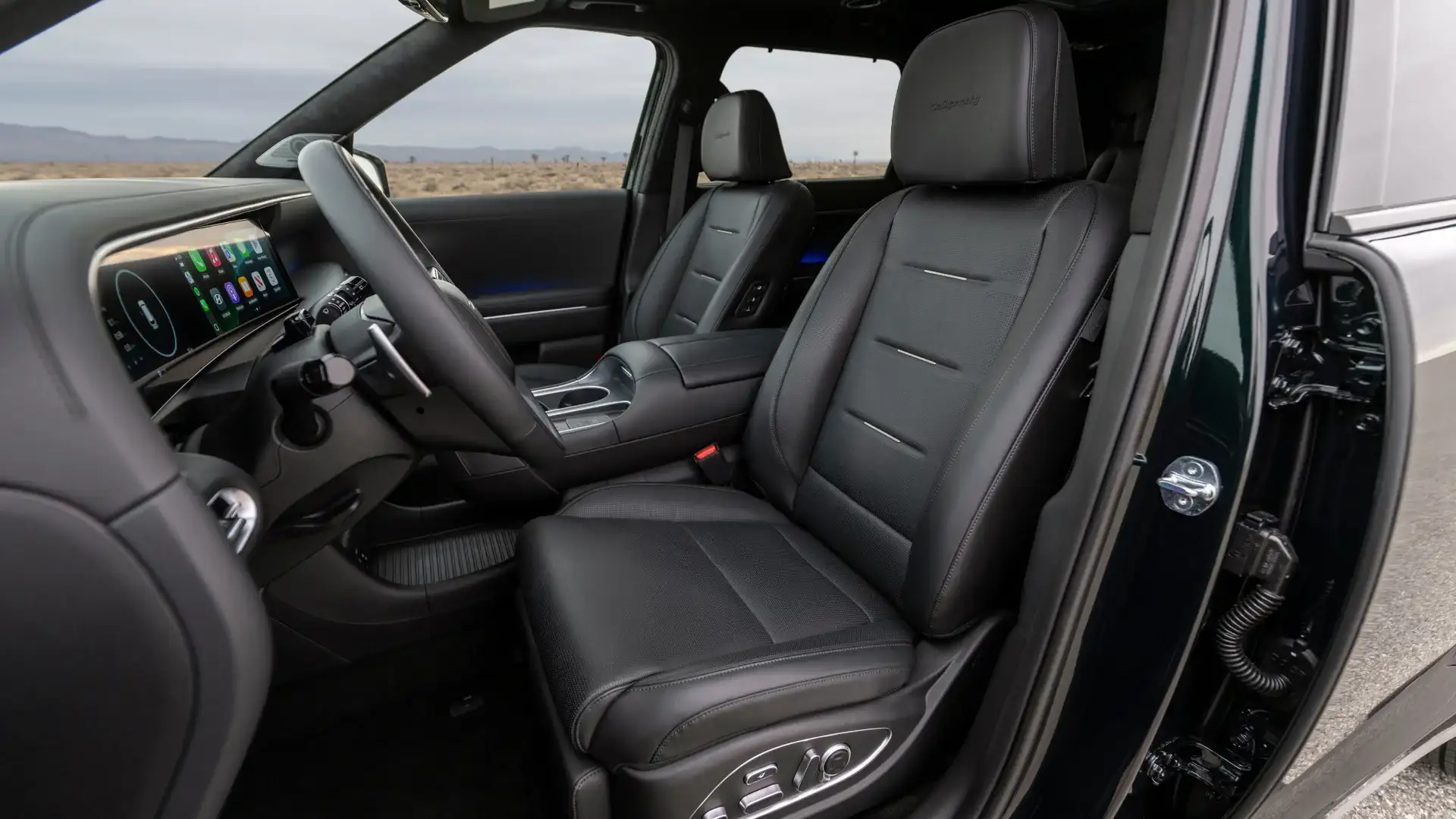

Front seats are available with eight-way power adjustment for both the driver and front passenger. Lumbar support configurations include two-way and four-way systems, depending on trim level. Heated front seats provide high, medium, and low settings, while ventilated front seats are available on several models. Integrated memory settings are offered for the driver’s seat on selected trims. Calligraphy models add Ergo-Motion functionality, leg cushion extension, and Relaxation Mode for additional comfort.
Second-Row and Third-Row Accommodations
Second-row seating is available in bench or captain’s chair configurations. Heated and ventilated second-row seating is offered on selected trims, and sliding second-row seats are standard throughout the lineup. Calligraphy models add power-adjustable second-row seats and wing-out headrests. Third-row seating includes split-fold functionality and dedicated ingress and egress handles. Higher trims provide power folding, reclining, sliding, and heated third-row seats to improve convenience and passenger comfort.
Climate Systems and Interior Materials
The 2026 Hyundai Palisade incorporates a three-zone automatic climate control system with automatic defog capability. Rear climate controls and dedicated vents for second-row and third-row passengers distribute airflow throughout the cabin. A cabin air filter and PTC heater are integrated into the system. Rear window defroster operation includes a timer function.
Interior surfaces include premium soft-touch materials on the upper door panels and console armrests. Artificial leather wrapping is applied to the dashboard across the lineup. Door handle finishes vary according to trim level and include metallic paint and satin chrome treatments. Premium center console surfaces are available on upper trims. Ambient lighting with 64 selectable colors enhances the interior environment on selected models.
Technology and Connectivity Features

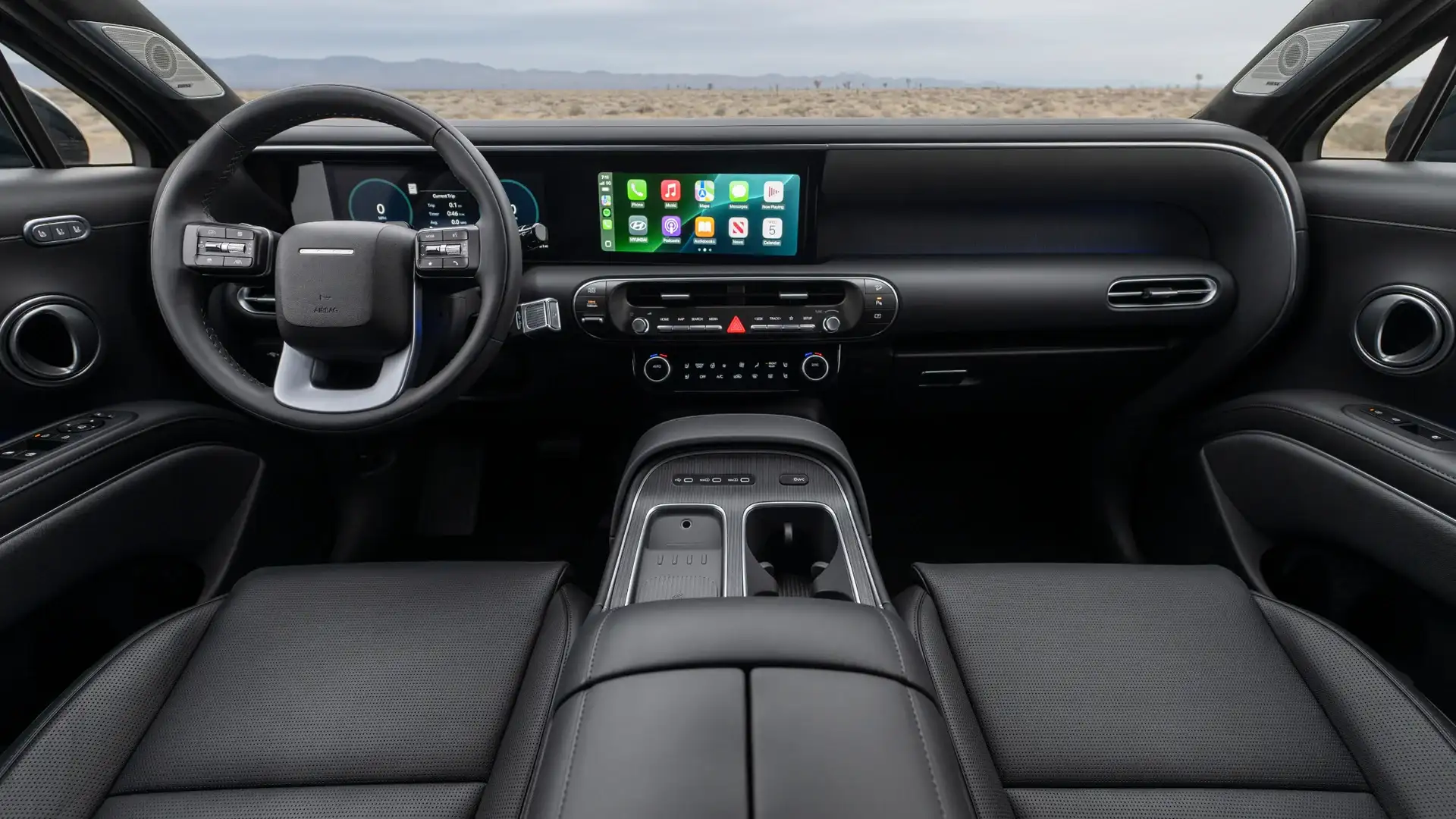

The 2026 Hyundai Palisade integrates a wide range of infotainment and digital technologies. Every model includes a 12.3-inch color touchscreen with onboard navigation. Wireless Android Auto™ and Apple CarPlay® are standard across the lineup. HD Radio™ capability and SiriusXM® support are also included. Connectivity features are designed to support communication and entertainment for occupants throughout the cabin.
Audio and Display Systems
Available audio equipment includes a Bose® 14-speaker premium system with Centerpoint and SoundTrue Enhanced Technology. Passenger Talk and Rear Seat Quiet Mode improve communication and audio management within the cabin. Multiple device connection capability allows two devices to be paired simultaneously. A 12-inch color head-up display is available on Calligraphy models. Front and rear built-in dashcam functionality is also offered on the highest trim.
Digital Convenience Technologies
Wireless device charging delivers up to 15 watts for compatible devices. High-power USB-C charging ports are distributed throughout all three seating rows. The Hyundai Digital Key 2 Premium is available and expands access functions. Bluelink® Connected Car services, Wi-Fi hotspot capability, and over-the-air software updates are included throughout the lineup. Remote Smart Parking Assist is also available on Calligraphy models.
Safety and Driver Assistance Systems
The 2026 Hyundai Palisade incorporates numerous active and passive safety technologies. Occupant protection includes front airbags, side-impact airbags, curtain airbags, a front center airbag, and a driver knee airbag. Seatbelt pretensioners and load limiters are fitted across multiple seating positions. LATCH anchors and tether points are provided to support child seat installation. Structural features are integrated with electronic systems to enhance occupant protection.
Active Safety Technologies
Blind-Spot Collision Warning and Rear Cross-Traffic Collision-Avoidance Assist are standard throughout the lineup. Lane Keeping Assist and Lane Following Assist 2 support directional guidance functions. Driver Attention Warning and Forward Attention Warning monitor driver activity. Forward Collision-Avoidance Assist provides detection capability for vehicles, pedestrians, and cyclists. Calligraphy models add additional functions that include Evasive Steering Assist.
Highway and Parking Assistance Features
Highway Driving Assist is available throughout the lineup, while Calligraphy models feature Highway Driving Assist II. Parking Distance Warning systems monitor surrounding areas during low-speed maneuvers. Selected trims include side parking sensors and Parking Collision-Avoidance Assist in reverse. Blind-Spot Collision-Avoidance Assist is offered on Calligraphy models. Trailer Sway Control is included to support stability while towing.
Dimensions and Utility Capabilities
The 2026 Hyundai Palisade rides on a 116.9-inch wheelbase and measures up to 200.4 inches in overall length depending on model configuration. Ground clearance ranges from 7.4 inches to 8.4 inches, with XRT PRO models receiving increased clearance. Roof rails are rated to support loads of up to 220 pounds. Interior dimensions provide generous space across all three seating rows. Cargo volume reaches 86.7 cubic feet behind the front seats and 46.3 cubic feet behind the second row.
Maximum towing capacity reaches 5,000 pounds for models equipped with the 3.5-liter engine when trailer brakes are used. Hybrid models are rated to tow up to 4,000 pounds with trailer brakes. Towing capacity without trailer brakes is rated at 1,650 pounds. The trailering system includes prewiring and heavy-duty transmission cooling components. Available equipment includes an OEM-installed trailer hitch and an integrated trailer brake controller.
Schedule a Test Ride Today
Drivers interested in exploring the capabilities of the 2026 Hyundai Palisade can visit ALM Hyundai Lumberton near Elizabethtown, NC. We encourage customers to experience the available powertrain options, integrated technology systems, and versatile seating configurations through a test drive. Our team can demonstrate the handling characteristics, towing-related equipment, comfort features, and driver assistance technologies available throughout the lineup. We are available to help you examine the vehicle’s connectivity systems, cargo flexibility, and safety features in greater detail. Contact us to schedule a test drive and learn more about the functional attributes of the 2026 Hyundai Palisade.
