2026 Hyundai IONIQ 5 near Raeford, NC
The 2026 Hyundai IONIQ 5 is engineered on a dedicated electric vehicle platform that integrates high-voltage battery systems, permanent-magnet synchronous motors, and a unibody chassis constructed from advanced high-strength steel and high-tensile materials. This configuration supports both rear-wheel drive and all-wheel drive layouts, providing flexibility in performance and efficiency. The vehicle operates on a 12-volt auxiliary electrical system in addition to its high-voltage traction system, ensuring stable operation of onboard electronics.
The structure uses a monocoque body design to improve rigidity while maintaining weight efficiency. The platform supports a wheelbase of 118.1 inches and an overall length of 183.3 inches, allowing for balanced interior space and maneuverability. A coefficient of drag rated as low as 0.282 contributes to aerodynamic efficiency, reducing resistance and supporting energy conservation during operation.
Electric Motor Configurations and Output Specifications
The 2026 Hyundai IONIQ 5 offers multiple motor configurations using permanent-magnet synchronous motor technology. The standard rear-wheel drive configuration delivers 125 kW, equivalent to 168 horsepower, with a maximum torque of 350 Nm. An enhanced rear-wheel drive setup increases output to 168 kW, or 225 horsepower, while maintaining the same torque figure.
The all-wheel drive configuration integrates dual motors, combining a 74 kW front motor and a 165 kW rear motor. This system produces a total output of 320 horsepower and 605 Nm of torque. The dual-motor setup enables improved traction and power distribution, particularly in varying surface conditions.
Power delivery is managed through a single-speed reduction gear transmission with a gear ratio of 2.263 and a final gear ratio of 4.706. The system includes shift-by-wire functionality for precise control. A front motor disconnector using a dog clutch reduces energy consumption by disengaging the front motor during conditions that do not require all-wheel drive operation.
The vehicle includes selectable drive modes consisting of Eco, Normal, Sport, and Snow. These modes adjust throttle response, motor output, and regenerative braking behavior to match driving conditions. The electronically governed maximum speed is rated at 115 miles per hour.
Battery System Engineering and Charging Performance
The 2026 Hyundai IONIQ 5 is equipped with lithium-ion battery systems available in two capacities. The standard-range battery provides 63.0 kWh, while the extended configuration offers 84.0 kWh. These systems operate at voltages of 523V and 697V respectively, supporting efficient energy transfer and compatibility with high-speed charging infrastructure.
Battery construction includes 288 cells arranged in 24 modules for the standard configuration and 384 cells in 32 modules for the extended version. The battery supplier is SK Innovation, with production sourced from Hungary. The system incorporates a battery preconditioning function that prepares the battery for optimal charging performance under varying temperature conditions.
Charging performance is structured around multiple charging standards. Using a Level II 240V AC charger, the standard battery charges from 10 percent to 100 percent in approximately 5 hours and 40 minutes, while the larger battery requires about 7 hours and 20 minutes. DC fast charging at 150 kW enables a 10 percent to 80 percent charge in approximately 24 to 30 minutes depending on battery size.
The system supports ultra-fast charging at voltages up to 800V and power levels exceeding 250 kW, allowing a 10 percent to 80 percent charge in approximately 20 minutes. Lower-capacity DC charging at 50 kW results in charge times ranging from approximately 1 hour and 1 minute to 1 hour and 21 minutes. Under optimal conditions, the vehicle can recover up to 178.1 miles of range within 15 minutes of charging. The onboard charger supports a maximum capacity of 10.9 kW.
Disclaimer: Approximately 24 minutes (63 kWh battery models) or 30 minutes (84 kWh battery models) to charge from 10% to 80% on a NACS V3/V4 DC Level 3 charger using the vehicle’s native NACS port. Actual charging time varies based on a number of factors, including current battery charge level, output of the charging unit, vehicle and battery settings, battery temperature and outside temperature.
Chassis Dynamics, Steering Systems, and Braking Technology
The suspension system consists of a MacPherson® strut configuration at the front and a multi-link setup at the rear. Both systems incorporate high-performance dampers to maintain ride stability and control. This configuration is designed to balance comfort with handling precision during acceleration, braking, and cornering.
The steering system uses a rack-and-pinion mechanism with motor-driven power assistance mounted on the rack. The steering ratio is 14.26 to 1, with 2.67 turns from lock to lock. The turning diameter measures 39.4 feet, supporting maneuverability in urban environments.
The braking system includes ventilated front disc brakes measuring 325 mm by 30 mm and solid rear disc brakes measuring 325 mm by 12 mm. The system integrates an anti-lock braking system with electronic brake-force distribution. Additional braking technologies include brake assist, hillstart assist control, and an active hydraulic booster that works with regenerative braking.
Regenerative braking is adjustable through steering wheel-mounted paddles, allowing the driver to control the level of energy recovery. The system converts kinetic energy into electrical energy during deceleration, contributing to improved efficiency.
Exterior Engineering and Functional Design Elements
The exterior of the 2026 Hyundai IONIQ 5 incorporates functional design features that enhance aerodynamics and usability. Active grille shutters regulate airflow to improve cooling efficiency and reduce drag. Flush-type door handles operate automatically to maintain a smooth exterior surface.
Lighting systems include LED daytime running lights, LED headlights with either multi-focus reflector or projector configurations, and LED taillights. High Beam Assist automatically adjusts headlight intensity based on surrounding traffic conditions. Higher trims include a front accent light bar for additional visibility.
Wheel configurations range from 18-inch to 20-inch alloy wheels, paired with tire sizes that vary according to trim and drivetrain. The vehicle includes a rear spoiler integrated with a center high-mount stop lamp. A hands-free smart power liftgate with adjustable height is available, along with a power-operated charge port door.
Additional exterior elements include heated side mirrors with integrated turn signals and blind-spot indicators. Rain-sensing windshield wipers are available on higher trims, and a panoramic fixed glass roof with a sunshade enhances interior light distribution.
Interior Systems and Digital Interface Integration

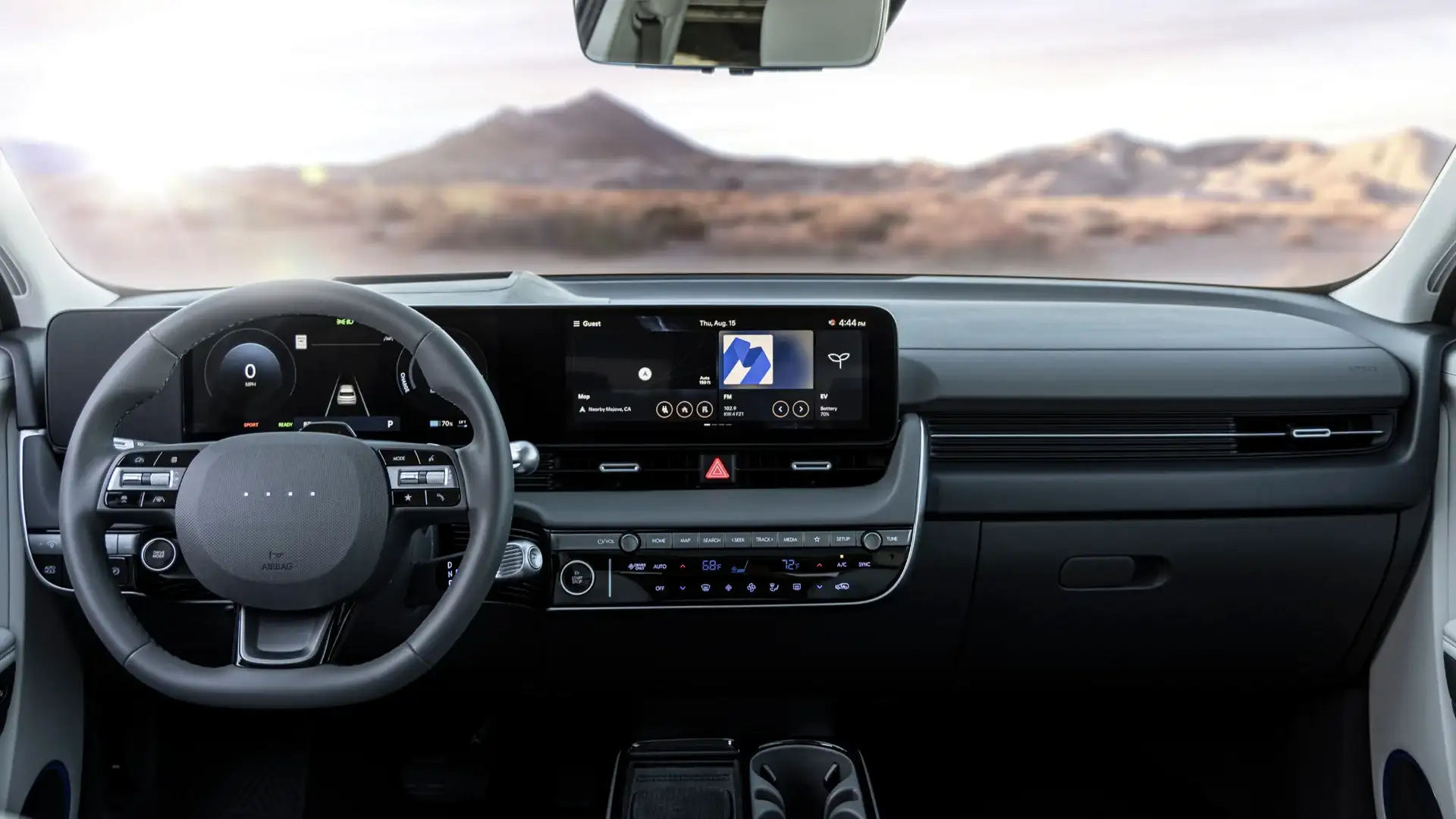

The interior of the 2026 Hyundai IONIQ 5 is equipped with a dual 12.3-inch display system. One screen functions as a digital instrument cluster, while the other serves as the infotainment interface. The system includes navigation, HD Radio™ functionality, and traffic data integration.
Wireless Apple CarPlay® and Android Auto™ are supported, along with Bluetooth® connectivity for multiple devices. The audio system includes a standard six-speaker configuration, with an available Bose® premium system featuring eight speakers and an external amplifier.
The vehicle includes multiple USB-C ports distributed across both rows, supporting device charging and data connectivity. A wireless phone charger rated at 15 watts is available. Higher trims include a head-up display that projects driving information onto the windshield.
Hyundai Digital Key 2 Premium enables vehicle access and operation using compatible mobile devices through NFC, Bluetooth® Low Energy, and ultra-wideband technology. Bluelink®+ connected services provide remote charge access and a built-in Wi-Fi hotspot.
Seating Configuration and Cabin Functionality
The cabin accommodates five passengers with a focus on adjustability and functional layout. The front seats include 8-way power adjustment for the driver and, on most trims, the passenger seat. Lumbar support is available, and higher trims include heated and ventilated front seats along with a driver seat relaxation function.

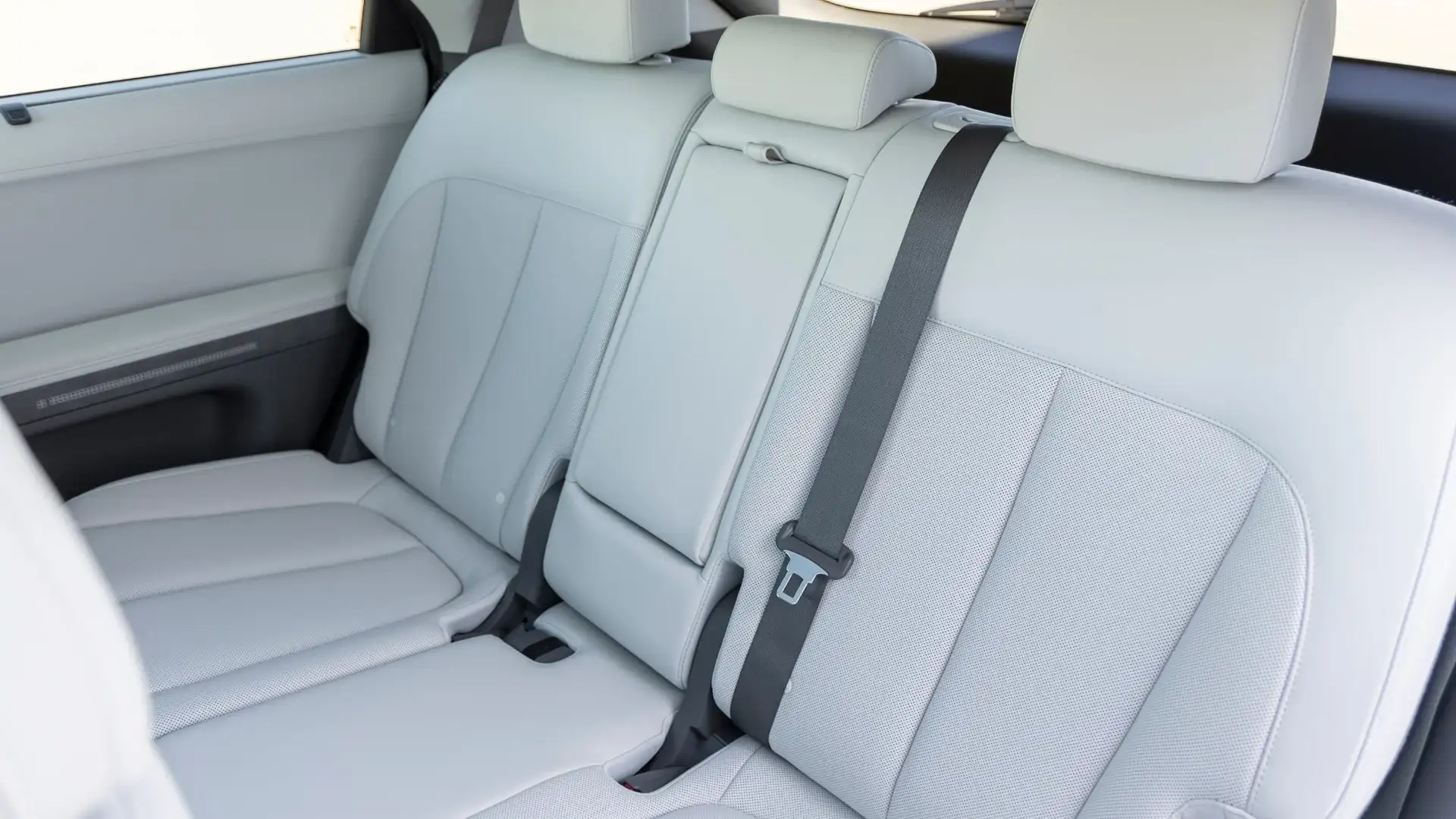

Rear seating consists of a 60/40 split-folding bench with sliding and reclining capability. Heated rear outboard seats are available on higher trims. Seating surfaces vary from stain-resistant cloth to H-Tex® artificial leather depending on trim level.
Climate control is managed through a dual-zone automatic system with rear air vents. A heat pump system is available on all-wheel drive models, improving energy efficiency during temperature regulation. The cabin includes a cabin air filter and rear window defroster with a timer.
Storage solutions include a configurable center console with sliding functionality on higher trims, multiple bottle holders, and cargo tie-down anchors. Cargo capacity reaches 26.3 cubic feet with rear seats in place and expands to 58.5 cubic feet when folded. A front trunk provides additional storage space.
Vehicle-to-Load capability allows the battery to supply power to external devices through an onboard two-way charging system.
Safety Systems and Driver Assistance Technologies
The 2026 Hyundai IONIQ 5 incorporates a comprehensive set of safety and driver assistance systems. The airbag system includes front, side-impact, curtain, and rear side airbags, supported by an occupant classification system and seatbelt pretensioners.
Active safety technologies include forward collision-avoidance assist with detection for vehicles, pedestrians, and cyclists. Enhanced versions include junction turning, crossing detection, lane change detection, and evasive steering assist. Blind-spot collision-avoidance assist and rear cross-traffic collision-avoidance assist provide additional situational awareness.
Lane-keeping assist and lane-following assist help maintain proper lane positioning. Highway Driving Assist systems provide adaptive cruise control with lane-centering capabilities, with advanced functionality available on higher trims. Navigation-based smart cruise control adjusts speed based on road curvature.
Additional systems include intelligent speed limit assist, driver attention warning, forward attention warning, and safe exit assist. Parking assistance technologies include parking distance warning sensors, surround view monitoring, and remote smart parking assist.
Passive safety features include front crumple zones, bodyside reinforcements, and an electronic shift lock system. The vehicle also includes a tire pressure monitoring system with individual tire indicators and alerts.
Dimensions, Space Utilization, and Capability Metrics
The 2026 Hyundai IONIQ 5 provides a total interior volume of 132.8 cubic feet, with passenger space measuring 106.5 cubic feet. Headroom measures 39.8 inches in the front and 38.7 inches in the rear. Legroom is rated at 41.7 inches in the front and 39.4 inches in the rear. Shoulder room is consistent at 57.7 inches for both rows.
Ground clearance measures 6.1 inches, increasing to 7.0 inches on XRT models. Approach and departure angles vary based on configuration, supporting moderate terrain adaptability. The vehicle includes a trailering package on select models, with XRT configurations supporting trailer weights up to 2,700 pounds when equipped with a tow hitch.
