2025 Hyundai Kona Electric near Raeford, NC
The 2025 Hyundai Kona Electric is engineered as a compact, fully electric sport utility vehicle that integrates high-efficiency propulsion, advanced battery systems, and comprehensive driver assistance technologies. Designed with a dedicated electric architecture, this model offers two lithium-ion battery configurations, a permanent-magnet synchronous motor, and a front-wheel-drive layout supported by a single-speed reduction gear transmission. The vehicle provides up to 261 miles of all-electric driving range in long-range configurations and maintains zero tailpipe emissions across the lineup. Its specifications demonstrate a focused approach to efficiency, structural integrity, and integrated digital systems.
Electrified Powertrain Configuration and Output Specifications
The 2025 Hyundai Kona Electric utilizes a Permanent-Magnet Synchronous Motor across all trims. The SE trim operates with a 99 kW electric motor rated at 133 horsepower. The SEL, N Line, and Limited trims are equipped with a higher-output 150 kW motor rated at 201 horsepower. All configurations deliver 188 lb-ft of torque, providing consistent acceleration through the electric drive system.
Power is delivered through a single-speed reduction gear transmission with a 10.65 gear ratio. This configuration eliminates conventional gear shifting and supports continuous torque application. The vehicle maintains a front-wheel-drive layout across the model range. Maximum vehicle operating speed is electronically governed at 101 mph for the standard-range configuration and 107 mph for long-range trims.
The Drive Mode Select system includes Eco, Normal, Sport, and Snow modes. These selectable modes adjust throttle response, steering characteristics, and regenerative braking behavior to suit various driving conditions. The integration of regenerative braking paddles mounted on the steering wheel allows the driver to manually adjust energy recovery levels during deceleration.
Battery Systems, Voltage Architecture, and Charging Capabilities
Two lithium-ion battery systems are available for the 2025 Hyundai Kona Electric. The SE trim features a 48.6 kWh battery operating at 269 volts. The SEL, N Line, and Limited trims utilize a 64.8 kWh battery operating at 358 volts. The standard-range configuration provides an estimated driving range of 200 miles. The N Line long-range trim provides approximately 230 miles of range, while the SEL and Limited long-range trims provide up to 261 miles.
The battery structure differs between configurations, with the standard-range system using a 1P72S structure and the long-range system using a 1P96S structure. Energy density measures 63.3 Wh per pound for the standard-range battery and 69.1 Wh per pound for the long-range battery. Battery weight is 767.9 pounds for the standard-range system and 938.2 pounds for the long-range system, excluding cooling components and hose assemblies.
Charging performance supports both Level II and DC fast charging. Using an 11 kW onboard charger with Level II charging, the standard-range battery charges from 10 percent to 100 percent in approximately 4 hours and 55 minutes. The long-range battery charges from 10 percent to 100 percent in approximately 6 hours and 5 minutes under the same conditions. When connected to a 100 kW DC fast charger, both battery configurations charge from 10 percent to 80 percent in approximately 43 minutes. A battery heating system is included as standard equipment to support charging and performance in lower temperature environments. Exterior Vehicle-to-Load capability is also standard, enabling the vehicle to supply electrical power to compatible external devices.
Disclaimer: EPA-estimated 261-mile driving range for 2025 KONA Electric Limited and 2025 KONA Electric SEL; EPA-estimated 230-mile driving range for 2025 KONA Electric N Line; and EPA-estimated 200-mile driving range for 2025 KONA Electric SE. All figures are EPA estimates and based on a fully charged battery. For comparison purposes only. Battery capacity decreases with time and use. Actual range will vary based on a number of factors, including vehicle options, driving conditions and habits, vehicle and battery’s condition, battery temperature and outside temperature.
Approximately 43 minutes to charge from 10% to 80% on a 400V DC fast charger. Actual charging time varies based on a number of factors, including current battery charge level, output of the charging unit, vehicle and battery settings, battery temperature and outside temperature.
Vehicle-to-Load (V2L) two-way charging will deplete battery and become inoperable once battery discharge limit reaches 20%. Not all electrical appliances will operate properly when using this feature. Do not use products that require a continuous power supply, and only use appliance under 16 amps. Additional limitations apply. See Owner’s Manual for more details.
Steering Precision and Suspension Engineering
The 2025 Hyundai Kona Electric incorporates a rack-and-pinion steering system with column-mounted Motor Driven Power Steering. The steering ratio is 13.6 to 1, with 2.5 turns lock to lock. The turning diameter measures 34.8 feet curb to curb, supporting maneuverability in urban settings.
The front suspension uses a MacPherson® strut design with coil springs and shock absorbers. The rear suspension features a multi-link configuration with shock absorbers. This arrangement balances ride comfort and cornering stability. The vehicle structure uses a unibody construction composed of Advanced High-Strength Steel and high tensile steel to enhance rigidity and crash performance.
Braking System Integration and Regenerative Functionality
The braking system combines mechanical and regenerative components. The front brakes use ventilated disc rotors measuring 305 millimeters in diameter and 25 millimeters in thickness. The rear brakes use solid disc rotors measuring 300 millimeters in diameter and 10 millimeters in thickness. Anti-lock Braking System with Electronic Brake-force Distribution is standard.
Hillstart Assist Control, Brake Assist, and an Electric Parking Brake are integrated into the braking system. The brake booster uses an active hydraulic booster design that coordinates regenerative braking with mechanical braking. Regenerative brake control paddles allow manual adjustment of deceleration intensity and energy recapture levels.
Exterior Lighting, Aerodynamics, and Dimensional Specifications
All trims include LED projector headlights, LED daytime running lights, an LED center high-mount stop lamp, and LED combination taillights. High Beam Assist is standard across the lineup. Active grille shutters positioned within the lower front grille support aerodynamic efficiency by regulating airflow.
Wheel configurations include 17 by 7.0-inch alloy wheels fitted with 215/60R17 tires on SE, SEL, and Limited trims. The N Line trim features 19 by 7.5-inch alloy wheels with 235/45R19 tires. The vehicle includes a Tire Mobility Kit in place of a traditional spare tire.
Exterior dimensions include a 104.7-inch wheelbase and an overall length of 171.5 inches. The N Line trim measures 172.6 inches in overall length. Overall width is 71.9 inches. Overall height measures 62.0 inches, or 62.2 inches depending on configuration. Ground clearance is 5.9 inches. Roof rails support a load capacity of 220 pounds.
The charge-port door is integrated into the front bumper area and operates with a push-open-and-close design. A hands-free smart liftgate with auto-open function is available on the Limited trim. Privacy glass is included on rear and quarter windows for SEL, N Line, and Limited trims.
Interior Seating, Climate Systems, and Cargo Measurements
The cabin accommodates five passengers. Seating surfaces include cloth for SE and SEL trims, N Line Black Alcantara® combination seats for the N Line trim, and H-Tex® leatherette-trimmed seats for the Limited trim. Heated front seats are included on multiple trims, while ventilated front seats are available on the Limited trim. The driver seat provides 6-way manual adjustment on lower trims and 8-way power adjustment with lumbar support on higher trims.
Dual Automatic Temperature Control with an auto-defog function and driver-only mode is standard. Second-row AC vents and rear seat heater ducts are included. A Positive Temperature Coefficient heater supports cabin heating efficiency. A cabin air filter and rear window defroster with timer are standard.

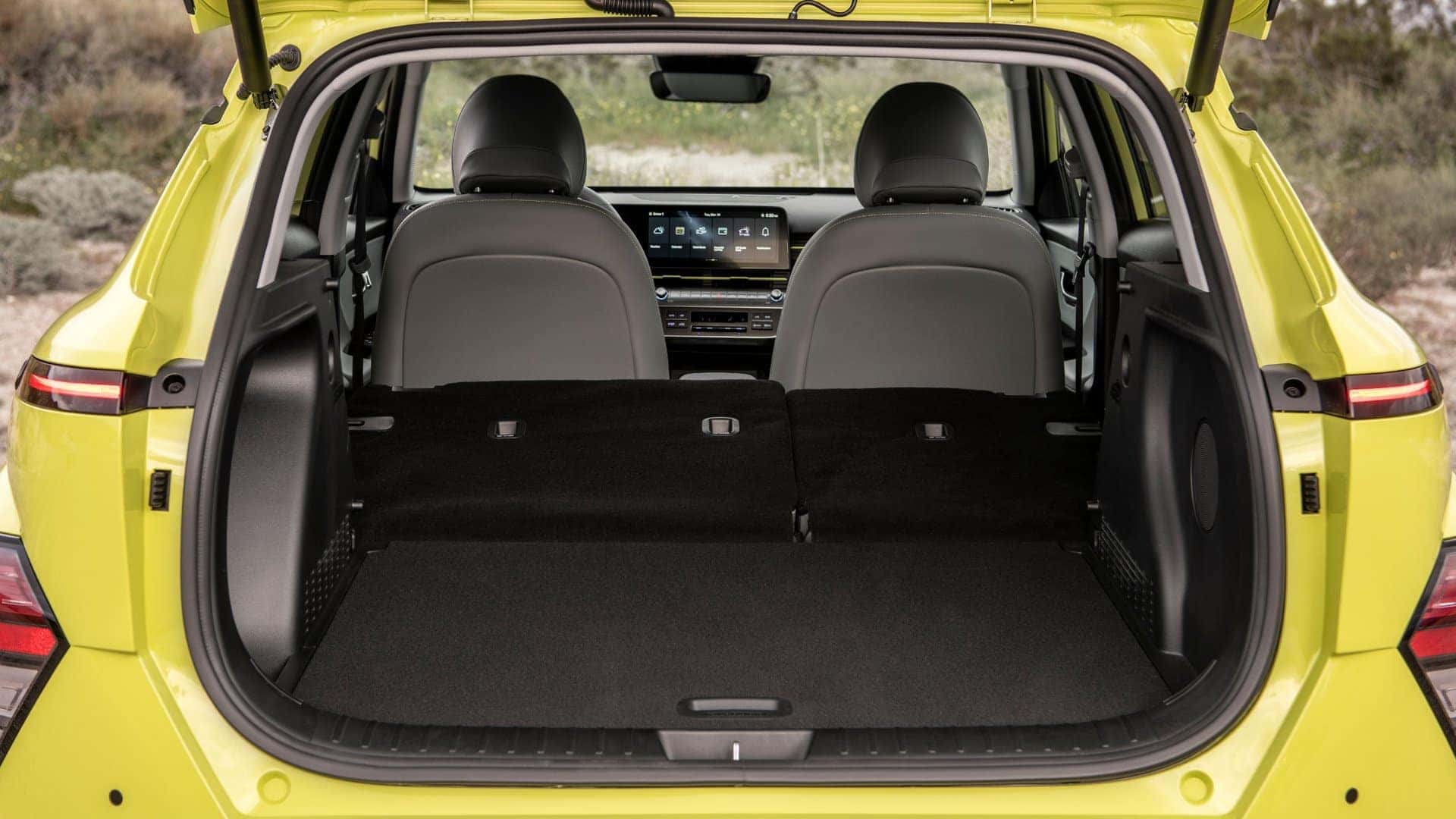

Cargo capacity measures 25.5 cubic feet with rear seats in the upright position and expands to 63.7 cubic feet with rear seats folded down. A dual-level cargo floor and four cargo anchors are included. A front under-hood storage tray provides 0.95 cubic feet of additional storage.
Digital Displays, Connectivity, and Integrated Technology
The 2025 Hyundai Kona Electric includes a 12.3-inch touchscreen navigation system with a 1920 by 720 resolution. Wireless Apple CarPlay® and Android Auto™ compatibility are standard. The audio system includes six speakers, with a Bose® premium audio system and eight speakers available on select trims.
A 12.3-inch digital instrument cluster displays speed, system power gauge, charge level, odometer, trip information, regenerative braking level, and driver assistance indicators. Wireless device charging is available on select trims. The Bluelink® Connected Car System, WiFi hotspot capability, and over-the-air software updates are standard. Hyundai Digital Key 2 Touch with NFC capability is available on higher trims. Remote Smart Parking Assist and Blind-Spot View Monitor are available on the Limited trim.
Comprehensive Active and Passive Safety Systems
The 2025 Hyundai Kona Electric includes advanced front airbags for the driver and passenger, front seat-mounted side-impact airbags, and side curtain airbags with rollover sensors. Seatbelt pretensioners and load limiters are included for front and rear outboard seating positions. Rear LATCH anchors support child restraint installation.
Active safety technologies include Forward Collision-Avoidance Assist with pedestrian, cyclist, junction turning, and direct oncoming detection. Blind-Spot Collision Avoidance Warning, Rear Cross-Traffic Collision Avoidance Assist, Lane Keeping Assist, Lane Following Assist, Intelligent Speed Limit Assist, Highway Driving Assist I, Driver Attention Warning, Safe Exit Warning, and Rear Occupant Alert are standard. Parking Distance Warning is available on the Limited trim. Electronic Stability Control, Traction Control System, Vehicle Stability Management, and Tire Pressure Monitoring System with individual tire indicators are included.
Schedule a Test Ride Today
We invite you to examine the 2025 Hyundai Kona Electric in person and evaluate its 201-horsepower electric motor, 64.8 kWh long-range battery system, and advanced regenerative braking controls. Our team at ALM Hyundai Lumberton near Raeford, NC, can demonstrate the 12.3-inch digital displays, DC fast-charging capability, and integrated driver assistance systems in detail. A test drive allows you to assess steering precision, ride quality, and acceleration performance directly. You can also explore the cargo flexibility, dual automatic climate system, and connectivity features during your visit. Contact our dealership to schedule your appointment and experience the full technical capability of the 2025 Hyundai Kona Electric.
